BASIC INFO

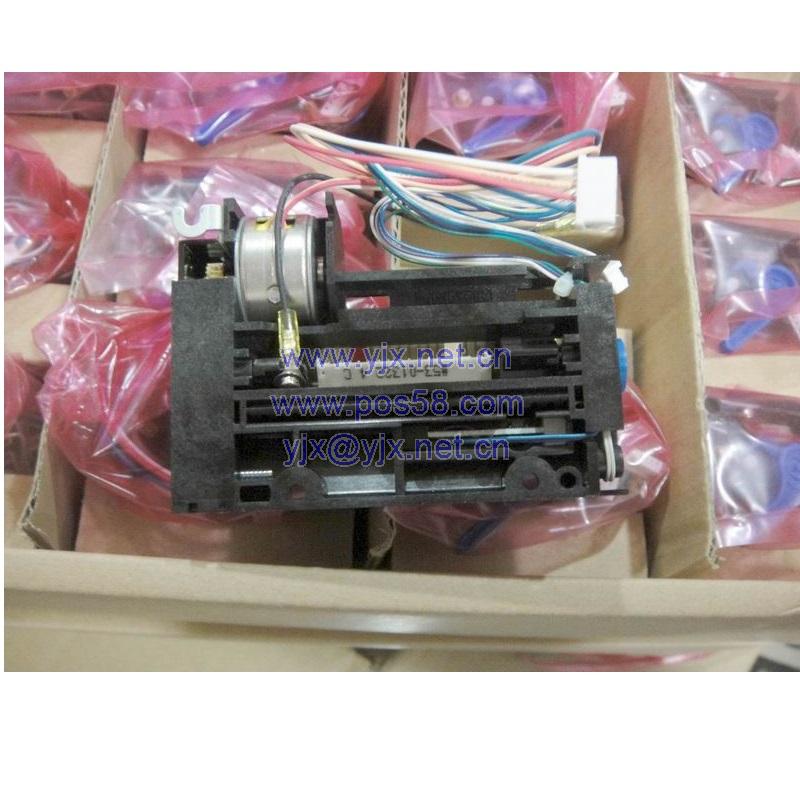

LTP2242D-C432A-E
|
|
|
|
|
| Model | LTP2242 | LTP2342 | LTP2442 | |
|---|---|---|---|---|
| Printing | Method | Thermal line dot printing | ||
| Number of dots/line | 432 | 576 | 832 | |
| Resolution(dots/mm) | 8 | |||
| Paper width(mm) |
60
|
80
|
112
|
|
| Printing width(mm) | 54 | 72 | 104 | |
| Speed(mm/sec)max | 90 | 75 | ||
| Paper path | Straight / Curved | |||
| Detection | Head-up | By thermistor | ||
| Platen position | By mechanical switch | |||
| Power supply(V) | Out of paper | By photo interrupter | ||
| Operation voltage (Vdd) | 4.75 to 5.25 | |||
| Operation voltage (Vp) | 21.6 to 26.4 | |||
| Peak current(A) | Head | 4.3 (26.4V / 288 dots) | ||
| Motor | 0.5 | |||
| Service life | Pulse activation(pulse) | 100 million | ||
| Abrasion resistance (km) | 50*1 | |||
| Operating temperature (°C) | 0 to 50 | |||
| Dimensions(W x D x H mm) | 85.2 X 61.4 X 27.0 *2 | 106.4 X 61.4 X 27.0 *2 | 138.2 X 61.4 X 27.0 *2 | |
| Mass(g) | Approx.115 | Approx.135 | Approx.160 | |
|
*1 Use recommended thermal papers *2 Excluding protrusion |
||||
Interface
| Model | IF2303-01B | IF2303-01BK | |
|---|---|---|---|
| CPU | PT230P01 | ||
| Thermal printer | LTP2242 , LTP2342 , LTP2442 | ||
| Operating voltage(V) | Vp:21.6 to 26.4, Vcc:4.5 to 5.5 | ||
| Character matrix(HXW dots) |
16 dots characters :16X8,16X16 24 dots characters :24X12,24X24 |
||
| Character type | Extended graphics character set | Yes | Yes |
| Katakana character set | No | Yes | |
| Optional font | Yes | Yes | |
| Downloaded character | Yes | Yes | |
| User-defined character | Yes | Yes | |
| JIS 1&2 level Kanji | No | Yes | |
| Communication interface | Parallel, Serial(C-MOS) | ||
| Dimensions(W x D x H mm) | 90.0 X 100.0 X 22.0 | ||
CPU
| Model | PT230P01 |
|---|---|
| Thermal printer | LTP2242 , LTP2342 , LTP2442 |
| Package form | 128pin QFP |
| Operating voltage(V) | Vp:21.6 to 26.4, Vcc:4.5 to 5.5 |
| Operating frequency(MHz) | 18.43 +/- 0.5% |
| Configuration | C-MOS LSI |
| Communication interface | Parallel, Serial |
| Character type |
Extended graphics character set, Other characters is available with CGs *1 or external RAM |
| Character matrix(H x W dots) |
16dots characters : 16 x 8, 16 x 16 24dots characters : 24 x 12, 24 x 24 |
| Dimensions(W x D x H mm) | 22.0 X 16.0 X 3.1 |
| *1 CG ROM: Japanese, Korean | |
Auto cutter
| Model | ACU2224 | ACU2324 | ACU2424 | |
|---|---|---|---|---|
| Thermal printer | LTP2242 | LTP2342 | LTP2442 | |
| Cutting | Method | Slide type | ||
| Paper width(mm) |
60
|
80
|
112
|
|
| Paper thickness(μm) | 65 to 125 *1 | |||
| Cutting type | Full cut / Partial cut(Leaving center point) | |||
| Operating time(sec/cycle)max | 0.5 | |||
| Cutting pitch(mm)min | 10 | |||
| Cut frequency(cut/min)max | 30 | |||
|
Operating voltage(V) |
Motor | 21.6 to 26.4 | ||
| Detector(control switch) | 4.75 to 5.25 | |||
| Starting Current (A) | 1.2 | |||
| Life (cut) | 300,000 | |||
| Dimensions(W x D x H mm) | 79.0 X 66.5 X 16.5 | 100.0 X 66.5 X 17.0 | 126.0 X 69.3 X 17.5 | |
| Mass(g) | Approx.120 | Approx.200 | Approx.260 | |
| *1 Use recommend thermal papers | ||||
