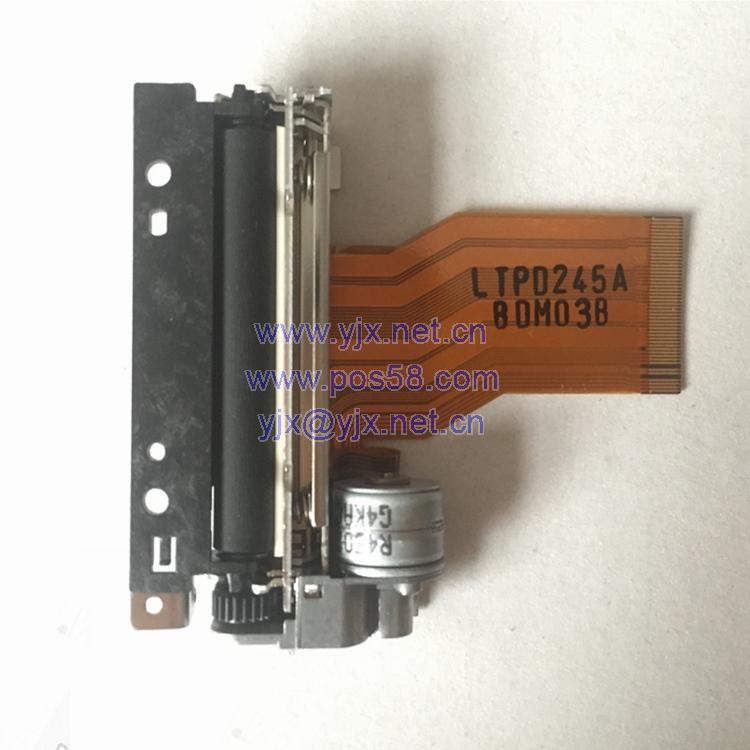

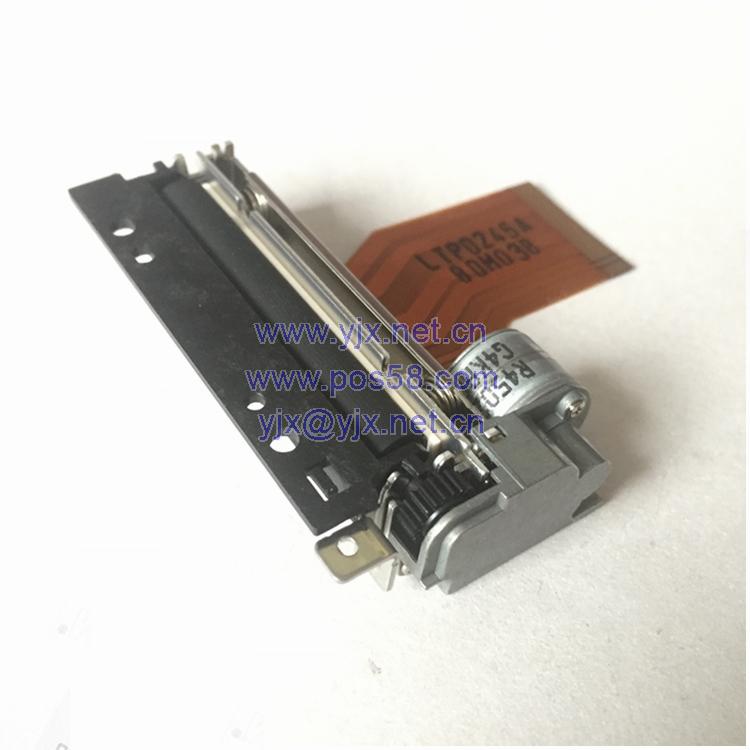

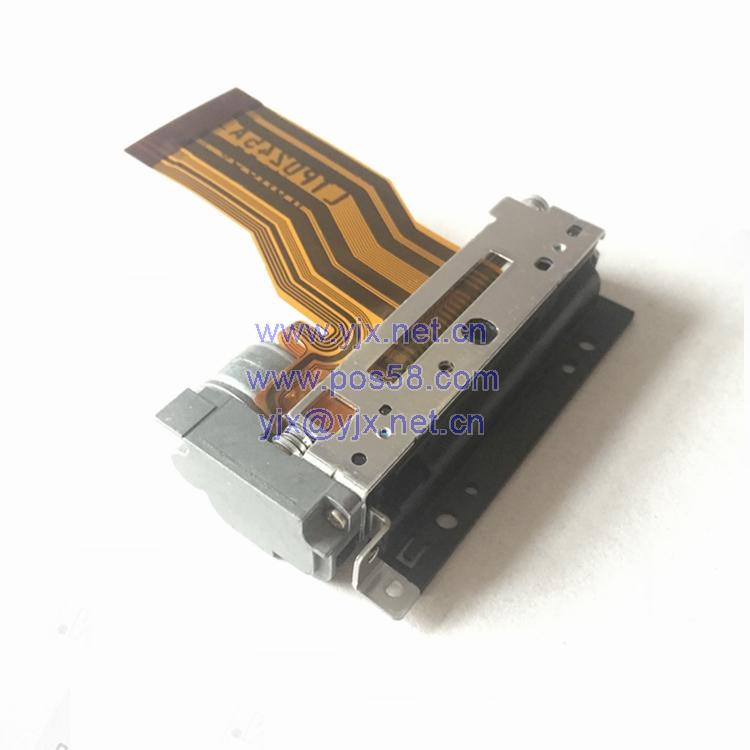

2 Inch Thermal Printer Head LTPD245A

  • Product Item：2 Inch Thermal Printer Head LTPD245A
  • Category： LTP Series Printers
  • 2 Inch Thermal Printer Head LTPD245A
  • Product Manual：2 Inch Thermal Printer Head LTPD245A
Inquiry
BASIC INFO

2 Inch Thermal Printer Head LTPD245A

Overview
Quick Details
Products Status:
Stock
Type:
thermal dot line printing
Style:
Black And White
Use:
Document Printer
Interface Type:
Other
Max Paper Size:
58mm
Black Print Speed:
100mm/sec
Color Print Speed:
Null
Max. Resolution:
384dots/line
Brand Name:
original
Model Number:
LTPD245A
Place of Origin:
Japan
Product name:
thermal printer mechanism ltp1245
Dimensions:
72 * 39.5 * 16mm
Weight:
45g
Operating temperature:
-10~50℃
Mass:
40g
Print width:
48mm
Vdd:
2.7 to 3.6 / 4.75 to 5.25V
Vp:
4.75 to 9.5V
Pulse activation:
100million
Printer head life:
50km

Product Description

* High performance in compact design


* Max. printing speed : 100mm/sec

* Platen latch function

* Label printing

Specification
Model
LTPD245A-384-E
Print method
Thermal dot line printing
Dots per line
384 dots
Resolution
8 dots/mm
Print width
48 mm
Paper width
58mm
Paper path
Curved
W * D * H（mm）
69 * 30 * 15
Maximum printing speed
100 mm/s
Head temperature detection
Via thermistor
Out-of-paper detection
Via photo interrupter
Platen position
Via photo interrupter
Operating temperature range (℃)
-10～50
Printer head life(km)
50
Operation voltage(Vdd)
2.7 to 3.6 / 4.75 to 5.25V
Operation voltage(Vp)
4.75 to 9.5V
Head peak current(A)
3.66 (9.5V / 64dots) / 5.49 (9.5V / 96dots)
Motor peak current(A)
0.6
