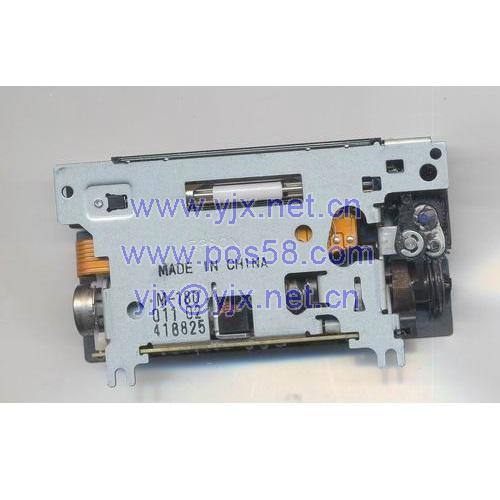

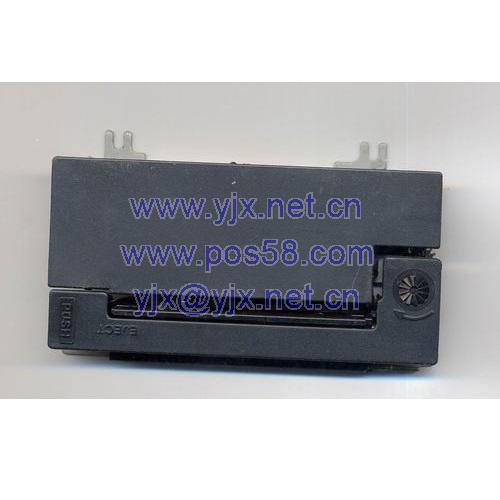

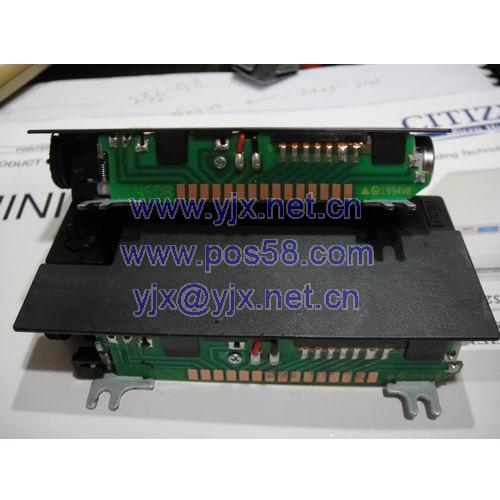

EPSON M-180 PRINTER head
Epson M-180 Series
Impact Mini Printers
Fast and highly durable
Overview
Fast and Highly Durable
The M-180 series of impact dot matrix printers offers greater speed and durability than even the M-150 series. The maximum printing speed is 1.7 lines / second and an MCBF of 1 x 106 lines.
Ultra-Compact Design
Weighing less than 100grams and extremely compact, the M-180 series offers solid performance for their size.
Perfect for Compact Measuring Instruments
The M-180 series accommodates specialised needs with selectable print formats (18 to 42 columns), making this series one of the most popular for use with compact measuring instruments.
Fast Paper Feeding Function
The fast paper feed function is standard on all models in the M-180 series.
Ni-Cd Battery Operation
The M-180 can be operated on four Ni-Cd batteries.
Specification
Impact Mini Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINTING METHOD | Shuttle impact dot matrix | |||||
| PRINTING FORMAT | ||||||
| FONT | 5 x 7 | |||||
| COLUMN CAPACITY |
M-180: 24 columns M-181: 30 columns M-182: 36 columns M-183: 42 columns M-185: 18 columns M-186: 20 columns |
|||||
| CHARACTER SIZE |
M-180: 1.7(W) x 2.6(H) mm M-181: 1.4(W) x 2.6(H) mm M-182: 1.2(W) x 2.6(H) mm M-183: 1.1(W) x 2.6(H) mm M-185: 1.7(W) x 2.6(H) mm M-186: 1.7(W) mm |
|||||
| LINE SPACING |
M-180/M-181/M-182/M-183/M-185: 3.7mm (in case of 5 x 7 font and 3 dots / line paper feed) M-186: – |
|||||
| COLUMN SPCAING |
M-180: 2.0mm M-181: 1.6mm M-182: 1.3mm M-183: 1.2mm M-185/M-186: 2.0mm |
|||||
| NUMBER OF TOTAL DOTS |
M-180: 144 dots / line M-181: 180 dots / line M-182: 216 dots / line M-183: 252 dots / line M-185: 108 dots / line M-186: 120 dots / line |
|||||
| PRINTING SPEED |
M-180: 1.7 lines / sec M-181: 1.3 lines / sec M-182: 1.1 lines / sec M-183: 1.0 lines / sec M-185: 1.7 lines / sec M-186: Typ 83ms/dotline |
|||||
| PRINTHEAD | ||||||
| TERMINAL VOLTAGE |
M-180/M-181/M-182/M-183/M-185: 3.3 to 5.5 VDC (3.3 to 5.5 VDC by Ni-Cd battery) M-186: 5.0 to 6.0 VDC |
|||||
| PEAK CURRENT |
M-180/M-181/M-182/M-183/M-185: Approx. 3 A / solenoid M-186: 3.5 A/ solenoid |
|||||
| MOTOR | ||||||
| TERMINAL VOLTAGE | 3.8 to 5.5 VDC | |||||
| MEAN CURRENT | Approx. 0.2 A | |||||
| PAPER | ||||||
| DIMENTIONS |
M-180/M-181/M-182/M-183: 57.5± 0.5 mm (W) x dia. 83mm maximum M-185: 44.4±0.5mm(W) M-186: Card Type (maximum width: 54mm) |
|||||
| TOTAL THICKNESS |
M-180/M-181/M-182/M-183/M-185: 0.06 to 0.085 mm M-186: 0.21 to 0.25mm |
|||||
| COPY CAPACITY | Original + one copy | |||||
| RIBBON CASSETTE | ERC-09/22 | |||||
| AMBIENT TEMPERATURE | 0° to 50°C | |||||
| RELIABILITY/th> | ||||||
| MCBF |
M-180/M-181: 1.0 x 106 lines M-182/M-183: 0.7 x 106lines M-185/M-186: 1.0 x 106lines |
|||||
| PRINTER |
M-180/M-181: 1.0 x 106 lines M-182/M-183: 0.7 x 106lines M-185/M-186: 1.0 x 106lines |
|||||
| OVERALL DIMENSIONS |
M-180/M-181/M-182/M-183/M-185: 91.0mm (W) x 46.9mm (D) x 15.8mm (H) M-186: 93.9mm (W) x 59.3mm (D) x 21.1mm (H) |
|||||
| WEIGHT |
M-180/M-181/M-182/M-183/M-185: Approx. 95 g M-186: Approx. 140 g |
|||||
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
Consumables
| There are no consumables for this product. |
