MSF 1425B magnetron

1.    MG1458A

2.    MSF1475A

3.    MSF1458A

(Applicable to FURUNO [Fuye] FR7041R FR7062 FR8062 and other types of radar)

parameter:

Anode peak voltage: 5.59 KV

Peak power: 10.72 KW

Frequency: 9409.0 MHZ

Supply accessories:

The company supplies FURUNO [Fuye] FR70**/FR80** series marine radar accessories for many years, mainly including: magnetron, main board, scanning board, power board, control board, middle board, microwave front end, antenna motor, etc.

The main types of magnetrons are: MSF1421/MSF1425/MG4004/MG4006/MG4010.



TYPE POWER FREQUENCY
M5068 25KW 965030MHZ
M5089 30KW 9415-9460MHZ
M5187 25KW 941030MHZ
M5187F 25KW 941030MHZ
M5199 30KW 9415-9460MHZ
MG5256 12.5KW 937530MHZ
MG5257 12.5KW 941030MHZ
MG5424 25KW 941030MHZ
MG5436 25KW 941030MHZ
MG5437 25KW 941030MHZ
MG5238 4KW 944530MHZ
MG5251 4KW 941030MHZ
MG5388 4KW 941030MHZ
MG5389 6KW 941030MHZ
MG5223 30KW 305010MHZ
MG5223F 30KW 305010MHZ
MG5240 60KW 305025MHZ

Radar magnetron:

NJRC:

1.MAF1421B/BN (for MD3642) 4KW

2.MSF1421B 4KW

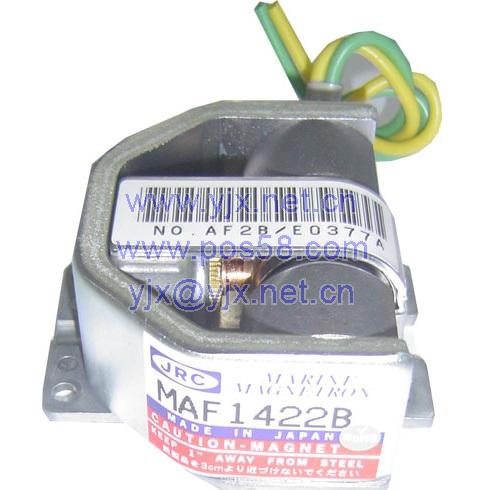

3.MSF1422B 6KW

4.MSF1425B (same as EEV MG5241) 12.5KW

5.9M61 10KW

6.M1430(S BAND) 10KW

7.9M72 25KW

8.M1437(A) 25KW

9.M1458/M1458A 25KW

10.M1475A 25KW

11.M1456B(J) 25KW

12.M1568BS 25KW

13.M1302L/M5020(S BAND) 25KW

14.M5187F/M1517N 25KW

15.M1555 30KW

16.2J55 50KW

17.2J70B(S BAND) 50KW

18.9M31 50KW

19.M1461(S BAND) 60KW
