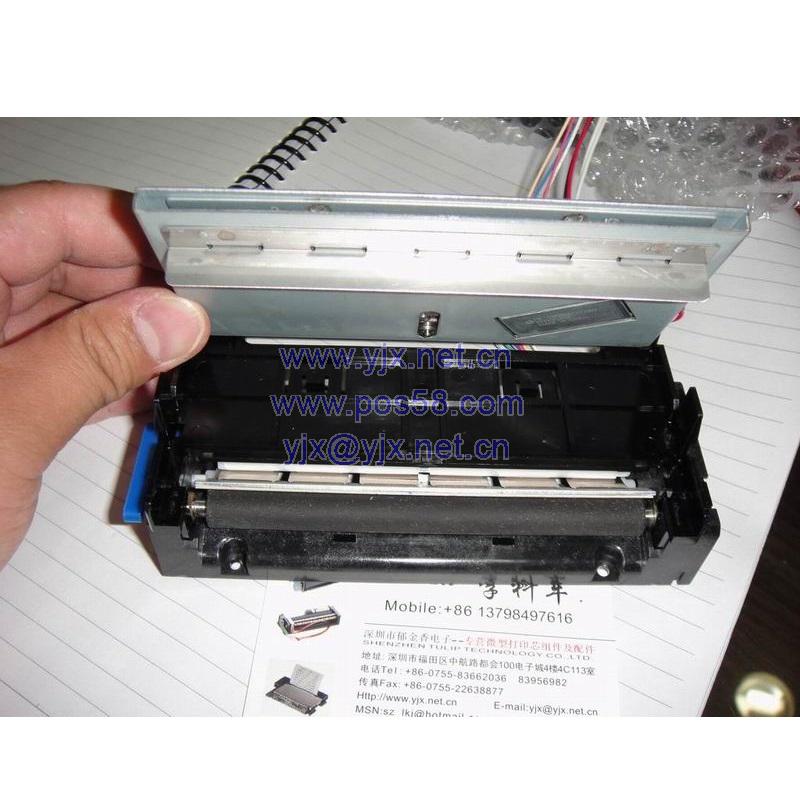

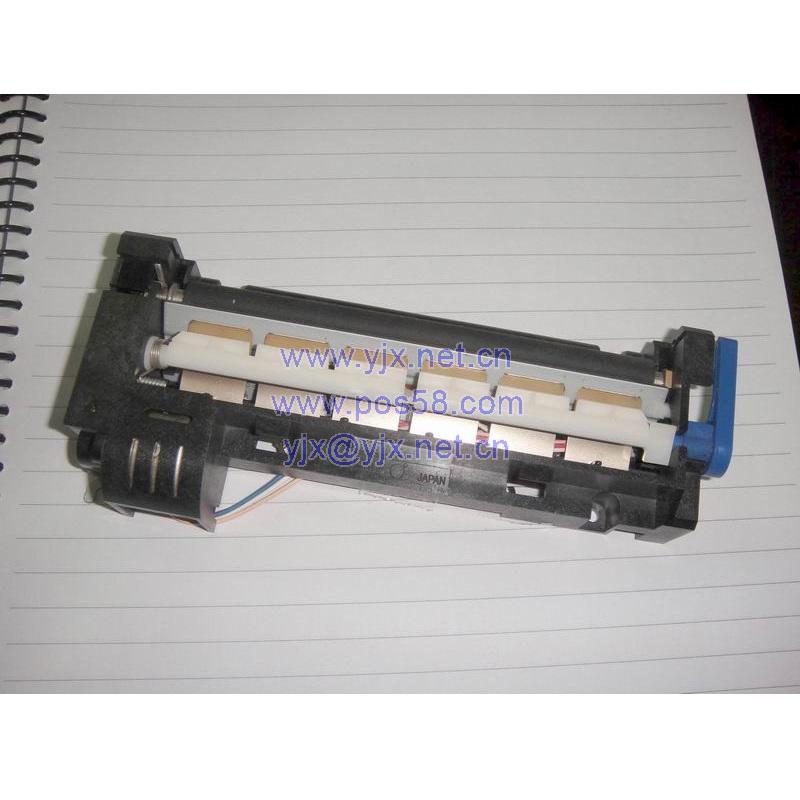

LTP2442D-C832A-Eseiko printer head

  • Product Item:LTP2442D-C832A-E
  • Category: LTP Series Printers
  • seiko printer headLTP2442D-C832A-E
  • 110mm
  • Product Manual:seiko printer headLTP2442D-C832A-E
BASIC INFO

seiko printer headLTP2442D-C832A-E


Loading Mechanism

LTP2000

  • Max printing speed (LTP2242) : 90mm/sec
  • Straight and curved path models available
  • Label printing
  • Support thick paper : up to 135μm*1
    (Straight path model only)
POS/ECRMeasuring instrumentBarcodeKIOSK SystemLabelTicket printerMedical equipment
LTP2242
Model LTP2242 LTP2342 LTP2442
Printing Method Thermal line dot printing
Number of dots/line 432 576 832
Resolution(dots/mm) 8
Paper width(mm) 60+- 80+- 112+-
Printing width(mm) 54 72 104
Speed(mm/sec)max 90 75
Paper path Straight / Curved
Detection Head-up By thermistor
Platen position By mechanical switch
Power supply(V) Out of paper By photo interrupter
Operation voltage (Vdd) 4.75 to 5.25
Operation voltage (Vp) 21.6 to 26.4
Peak current(A) Head 4.3 (26.4V / 288 dots)
Motor 0.5
Service life Pulse activation(pulse) 100 million
Abrasion resistance (km) 50*1
Operating temperature (°C) 0 to 50
Dimensions(W x D x H mm) 85.2 X 61.4 X 27.0 *2 106.4 X 61.4 X 27.0 *2 138.2 X 61.4 X 27.0 *2
Mass(g) Approx.115 Approx.135 Approx.160
*1 Use recommended thermal papers *2 Excluding protrusion

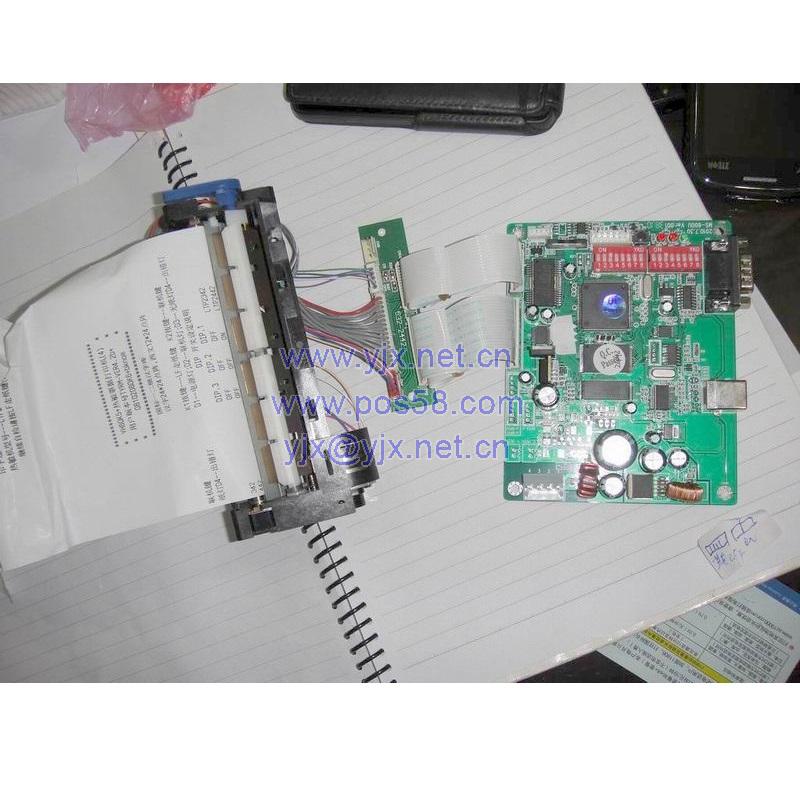

Interface

Model IF2303-01B IF2303-01BK
CPU PT230P01
Thermal printer LTP2242 , LTP2342 , LTP2442
Operating voltage(V) Vp:21.6 to 26.4, Vcc:4.5 to 5.5
Character matrix(HXW dots) 16 dots characters :16X8,16X16
24 dots characters :24X12,24X24
Character type Extended graphics character set Yes Yes
Katakana character set No Yes
Optional font Yes Yes
Downloaded character Yes Yes
User-defined character Yes Yes
JIS 1&2 level Kanji No Yes
Communication interface Parallel, Serial(C-MOS)
Dimensions(W x D x H mm) 90.0 X 100.0 X 22.0

CPU

Model PT230P01
Thermal printer LTP2242 , LTP2342 , LTP2442
Package form 128pin QFP
Operating voltage(V) Vp:21.6 to 26.4, Vcc:4.5 to 5.5
Operating frequency(MHz) 18.43 +/- 0.5%
Configuration C-MOS LSI
Communication interface Parallel, Serial
Character type Extended graphics character set,
Other characters is available with CGs *1 or external RAM
Character matrix(H x W dots) 16dots characters : 16 x 8, 16 x 16
24dots characters : 24 x 12, 24 x 24
Dimensions(W x D x H mm) 22.0 X 16.0 X 3.1
*1 CG ROM: Japanese, Korean

Auto cutter

Model ACU2224 ACU2324 ACU2424
Thermal printer LTP2242 LTP2342 LTP2442
Cutting Method Slide type
Paper width(mm) 60+0-1 80+0-1 112+0-1
Paper thickness(μm) 65 to 125 *1
Cutting type Full cut / Partial cut(Leaving center point)
Operating time(sec/cycle)max 0.5
Cutting pitch(mm)min 10
Cut frequency(cut/min)max 30
Operating
voltage(V)
Motor 21.6 to 26.4
Detector(control switch) 4.75 to 5.25
Starting Current (A) 1.2
Life (cut) 300,000
Dimensions(W x D x H mm) 79.0 X 66.5 X 16.5 100.0 X 66.5 X 17.0 126.0 X 69.3 X 17.5
Mass(g) Approx.120 Approx.200 Approx.260
*1 Use recommend thermal papers
