BASIC INFO

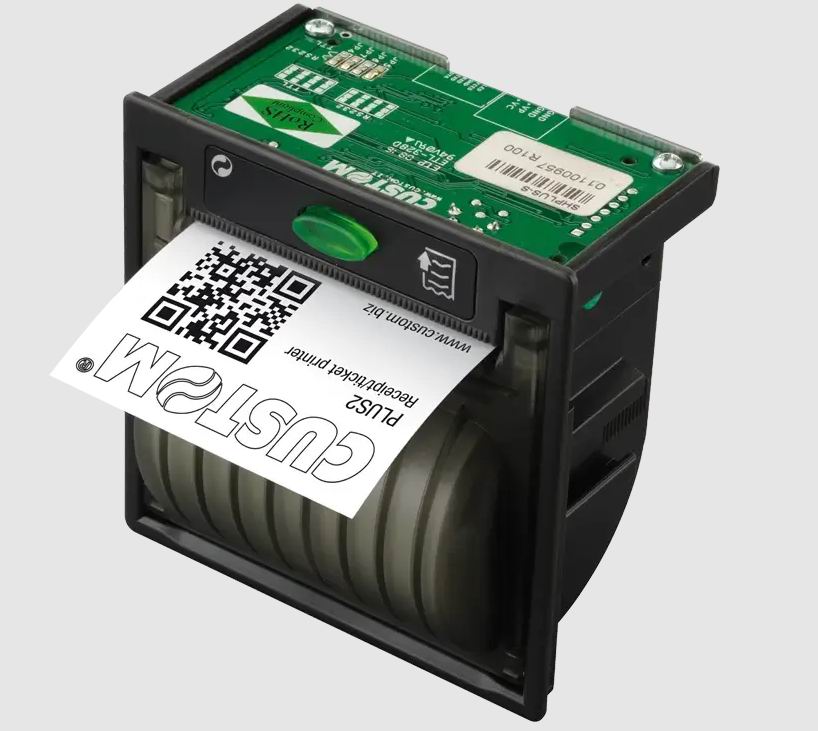

PLUS2
Panel printer
- High print quality (200 DPI)
- Same mechanics as PlusII (100% compatible)
- Paper width: 58mm
- Paper weight: 55-70gr/mq
- Paper roll dimension Ø 50mm
- Power supply: 4-7.5Vdc (9-48 Vdc with optional board)
- 4MB internal flash memory for logos and fonts
- Interfaces: RS232/TTL (selectable with lever switch), mini USB
- Barcodes: 1D and 2D (QRCODE)
- International fonts on-board: any language available
- Sensors: head temperature, paper presence, cover open (optional)
- UL, CE, FCC approved
- The ideal solution for tough environments: from -20 up to +70 degrees
- PLUS2
- Characteristics
- Accessories
- Technical sheet
- Models
- Download Datasheet
-
Share
CHARACTERISTICS
- Energy-efficient functionality to reduce consumption
- RGB status LED
- FEED button
- ECO MODE
With only one model of printer you can print on "linerless" adhesive paper or standard thermal paper, allowing to meet different needs and applications
APPLICATIONS
- Workshop equipment
- Medical equipment
- PC panel and control systems
- Weighing instruments: industrial, portable
- Fire detection systems
- Sterilization equipment
- Taximeters
- Truck tachographs
- Access control
- Measurement devices: durometers, electrical devices, etc...
AVAILABLE VERSIONS
- RS232/TTL and mini USB
- Mechanical version (without electronic board)
ACCESSORIES
- Extended range module (9-48 Vdc)
What is in the box:
- Device, fixing clips
SOFTWARE
Thanks to Custom Power Tool you can create - or change - on your own the layout of your tickets or receipts in a few simple steps. You can also do it without having computer skills, thanks to the practical interface which has been designed by Custom.
Discover Custom Power Tool
SOFTWARE PrinterSet : to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.
Discover PrinterSetTECHNICAL SHEET
| Printing Method | Thermal |
| Number of dots | 8 dots/mm |
| Columns | 24, 32, 40, 42 |
| Resolution | 203 DPI |
| Printing (mm/sec) | max 50mm/sec (in absence of energy-efficient functionality) |
| Character set | European, International, Portuguese and Nordic, Chinese (GB18030), Katakana, Arabic, Greek, Turkish, Hebrew, and Cyrillic |
| Supported Barcode | 1D and 2D (QRCODE) |
| Paper width | 58 mm |
| Paper weight | from 55 to 70 g/m² |
| Roll Dimension | Ø 50mm |
| Sensors | Head temperature, paper presence, cover open (optional) |
| Emulation | Escape Command Compatibility, PlusII compatibility |
| Interfaces | RS232/TTL, mini USB |
| Data Buffer | 16Kb |
| Flash Memory | 4MB (+768 Kb internal) |
| RAM Memory | 128Kb internal + 8MB external |
| Graphic Memory | 4MB internal flash memory for logos and fonts |
| Drivers |
Windows® (32/64 bit) – only on request WHQL and silent installation; Linux (32/64 bit); Virtual COM (Linux or Windows 32/64 bit); Android™ |
| Software Tools | PrinterSet, CustomPowerTool, Custom Windows API |
| Power supply | 4-7.5 Vdc (9-48 Vdc with optional board) |
| Operating temperature | -20 a +70 |
| Marks | UL, CE, FCC |
| Dimensions | 56.9 (L) x 85 (H) x 85 (W) mm |
| Weight | 145gr |
