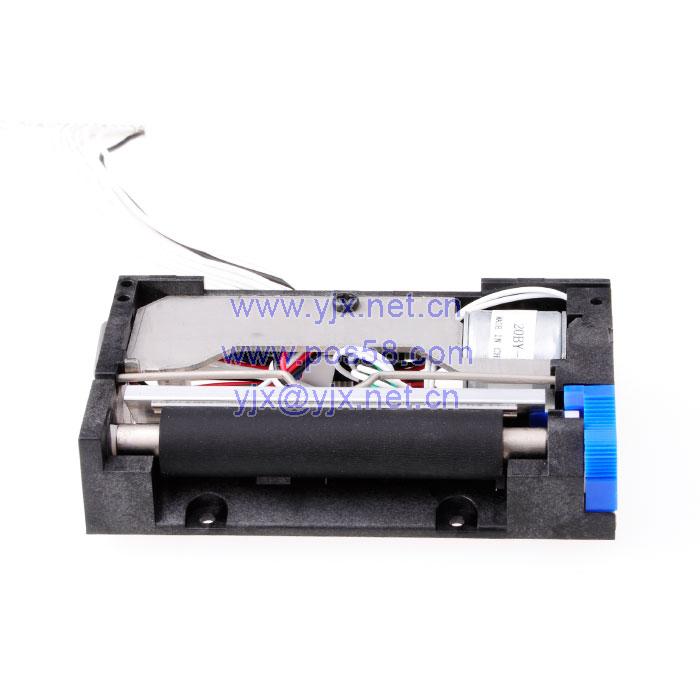

PT541A-BF
Series Model |
PT541 |
PRINTING CHARACTERISTICS |
|
Print Method |
Direct line thermal |
Resolution |
8 dots/mm |
Max. Printing Width |
54mm |
Number of Dots |
432 |
Paper Width |
57.5±0.5mm |
Max. Printing Speed |
75mm/s |
Paper Path |
Curved/Straight |
DETECTION |
|
Head Temperature |
By thermistor |
Paper Out |
By photo sensor |
Platen Open |
By Mechanical SW |
POWER SUPPLY |
|
TPH Logic Voltage |
3.0V-5.25V |
Drive Voltage |
24V±10% |
PEAK CURRENT |
|
Head(Max.) |
1.58A(24V/96dots) |
Motor |
360mA |
RELIABILITY |
|
Pulse Activation |
100 million |
Abrasion Resistance |
100KM |
ENVIRONMENTAL |
|
Operating Temperature |
0 - 50℃ |
PHYSICAL CHARACTERISTICS |
|
Dimensions(W*D*H) |
90.8*54.5*20.0mm |
Mass |
107g |
