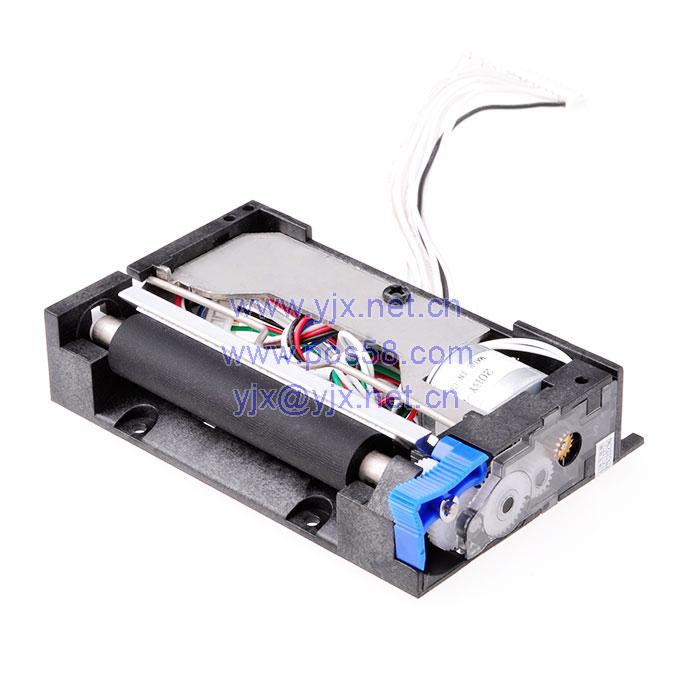

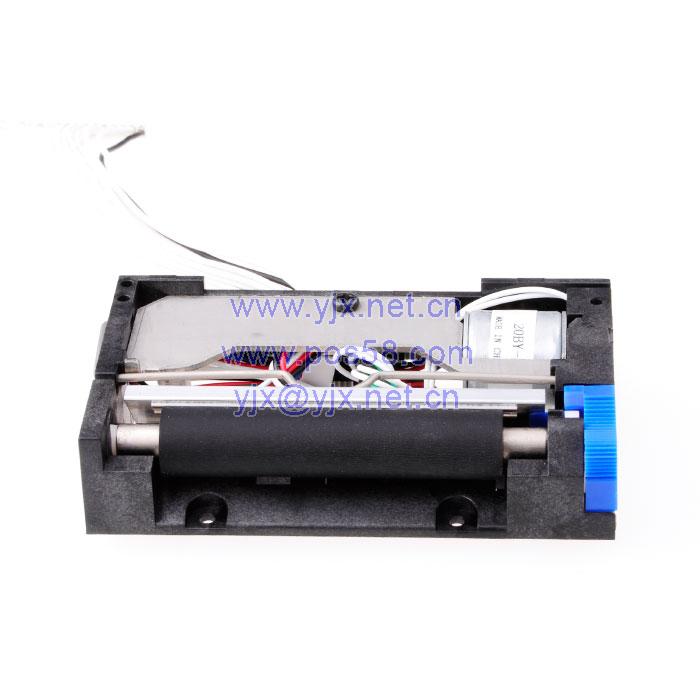

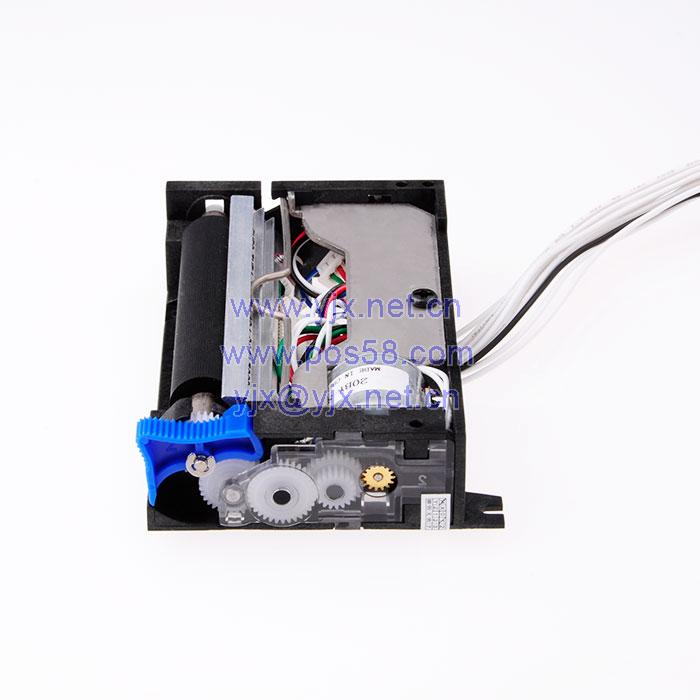

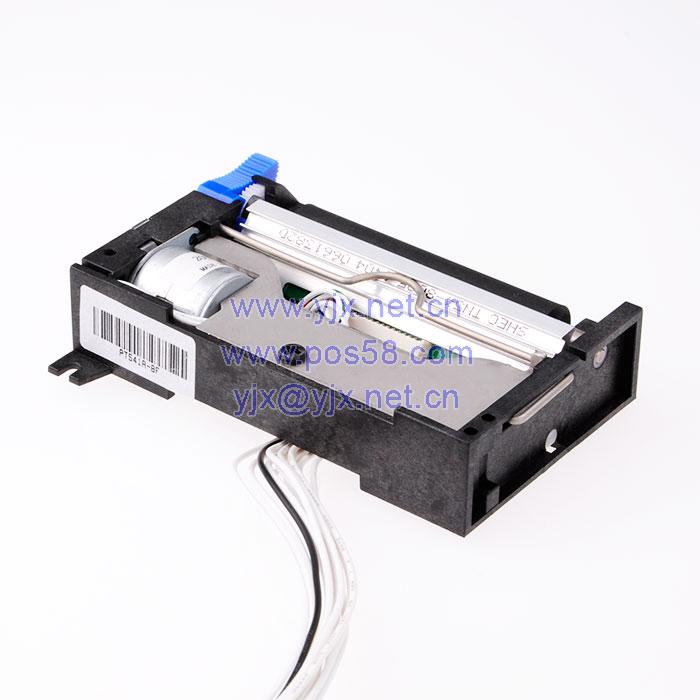

Overview
1. Low voltage supply
The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 24V-26.5V.
2. Compact and lightweight design
The mechanism is compact and light, dimensions: 90.8mm (width) * 54.5mm (depth) * 20mm (height)
3. Printing with high resolution
A high-density printer head of 8 dots/mm makes the good printing quality
4. High speed printing
According to driving power and sensitivity of thermal paper, set different printing speed required. Printing speed is 75 mm/ s (max.)
5. Easy paper loading
Detachable rubber roller structure makess the paper loading easier
6. Low noise
Thermal line dot printing is used to guarantee low noise printing.
Specification
|
Series Model
|
PT541
|
|
PRINTING CHARACTERISTICS
|
|
|
Print Method
|
Direct line thermal
|
|
Resolution
|
8 dots/mm
|
|
Max. Printing Width
|
54mm
|
|
Number of Dots
|
432
|
|
Paper Width
|
57.5±0.5mm
|
|
Max. Printing Speed
|
75mm/s
|
|
Paper Path
|
Curved/Straight
|
|
DETECTION
|
|
|
Head Temperature
|
By thermistor
|
|
Paper Out
|
By photo sensor
|
|
Platen Open
|
By Mechanical SW
|
|
POWER SUPPLY
|
|
|
TPH Logic Voltage
|
3.0V-5.25V
|
|
Drive Voltage
|
24V±10%
|
|
PEAK CURRENT
|
|
|
Head(Max.)
|
1.58A(24V/96dots)
|
|
Motor
|
360mA
|
|
RELIABILITY
|
|
|
Pulse Activation
|
100 million
|
|
Abrasion Resistance
|
100KM
|
|
ENVIRONMENTAL
|
|
|
Operating Temperature
|
0 - 50℃
|
|
PHYSICAL CHARACTERISTICS
|
|
|
Dimensions(W*D*H)
|
90.8*54.5*20.0mm
|
|
Mass
|
107g
|
