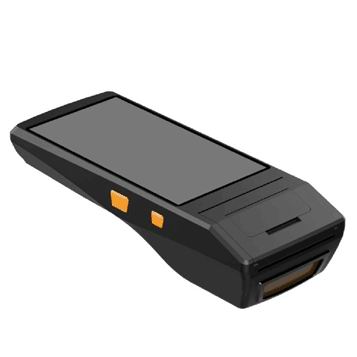

YJX-P5501
All-netcom 4G android multi-functional intelligent terminal.
Rugged explosion-proof stable and reliable
Widely used in logistics express, storage management, parking fees, administrative enforcement, product traceability and other fields.
Multifunction
Set 4G Netcom data transmission, barcode/two-dimensional code
scanning module, built-in printer, contact and non-touch chip card (NFC)
read and write.
Multiple options
To meet the needs of different industries and customers, optional fingerprint recognition, ultra-high frequency RFID, second generation identity card identification, 433MHz communication module, etc., and set aside a variety of extended communication interfaces.
Healthcare Warehouse Meter reader Ticketing Parking Express Manufacturing Tracking
|
YJX-P5501 Specification Sheet |
System Configuration
|
Processor |
ARM Cortex A53 Quad-core 64bits 1.3GHz |
|
|
O.S |
Android 6.0 |
|
|
Memory |
8GB ROM+1GB RAM |
|
|
Ex-Storage |
Micro SD (Up to 64GB) |
|
|
Display |
5.5inch IPS 720x1280 High Resolution |
|
|
Camera |
AF 8.0M Pixels with LED flash light |
|
|
Touch Panel |
||
|
Keypad |
||
|
Vibrator/LED/Speaker |
||
|
Battery |
7.4v 4000mAh rechargeable lithium polymer battery |
|
|
Audio |
Built-in microphone/Headphone slot |
|
|
Sensor |
G-sensor |
|
|
|
Micro USB/Serial Port(TTL) |
|
|
Structural Parameters |
||
|
Dimensions(LxWxD) |
210*80*42mm |
|
|
Weight |
505g(battery included) |
|
|
Communication Transmission |
||
|
Mobile Network
|
3G： WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz 4G：LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41 |
|
|
Wi-Fi |
IEEE 802.11 b/g/n |
|
|
Bluetooth |
Bluetooth 4.0 |
|
|
GPS |
||
|
Printer |
||
|
Method |
||
|
Speed |
70mm/sec |
|
|
Width |
48mm(384 Dots/lines) |
|
|
Sensor |
Black mark / out of paper / overheat over-voltage protection |
|
|
Medium |
Thermal paper and label |
|
|
Type |
Text/image/bar code/QR code |
|
|
Operating Environment |
||
|
Develop Tools |
Android SDK + JDK + Eclipse |
|
|
P-Language |
Java |
|
|
Operating Temp. |
-10°~ 50°C |
|
|
Storage Temp. |
-20°~ 70°C |
|
|
Humidity |
0 ~ 95% (non-condensing) |
|
|
Sealing |
IP65 |
|
|
1D Laser Scanner |
||
|
Speed |
100 lines/sec |
|
|
Scan Angle |
±50° |
|
|
Identification accuracy
|
≥4mil |
|
|
|
|
|
|
|
|
|
|
Decoding Type |
UPC-A，UPC-E，UPC-E1，EAN-13，EAN-8，ISBN/ISSN，Code 39，code39 (ASCII full)， Interleaved 2 of 5，Industrial 2 of 5,Matrix 25,Codebar(NW7)，Code 128，UCC/EAN 128，ISBT128，code 93，MSI/Plessey，UK/Plessey，China post，GS1 Data Bar |
|
|
2D Image Scanner |
||
|
Method |
CMOS Image |
|
|
Scan Speed |
60scans/sec |
|
|
Scan Angle |
360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 ° |
|
|
Identification accuracy |
2D≥7.5mil，1D≥5mil |
|
|
Decoding Type |
QR Code, Data Matrix, PDF417，UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar |
|
|
DPM |
Support DPM scanner (optional) |
|
|
NFC/HF RFID |
||
|
Protocol |
ISO/IEC 14443A/B,ISO15693 |
|
|
Frequency |
13.56MHz |
|
|
NFC type |
Type1-4Tag/Mifare/Felica |
|
|
PSAM/ Contact Card |
||
|
PSAM |
IS0/IEC 7816 1-4 |
|
|
Contact chip card |
IS0/IEC 7816 (optional) |
|
|
Fingerprint(Optional) |
||
|
Method |
Flat surface press to semiconductor sensor |
|
|
Sensor |
FPC1020 |
|
|
Image |
242*266 pixels |
|
|
Image resolution |
508dpi |
|
|
Storage |
2000 pieces |
|
|
UHF RFID(Optional) |
||
|
Frequency |
902Mhz-928Mhz、865MHz-868MHz(optional) |
|
|
Protocol |
EPC global UHF Class 1 Gen 2/ISO 18000-6C |
|
|
Capture Range |
1-2m |
|
|
Output Power |
18-26dBm |
|
|
Accessories |
||
|
Hand Strap Adapter Manual USB cable OTG cable |
