BASIC INFO
PRODUCT SPEC SHEET

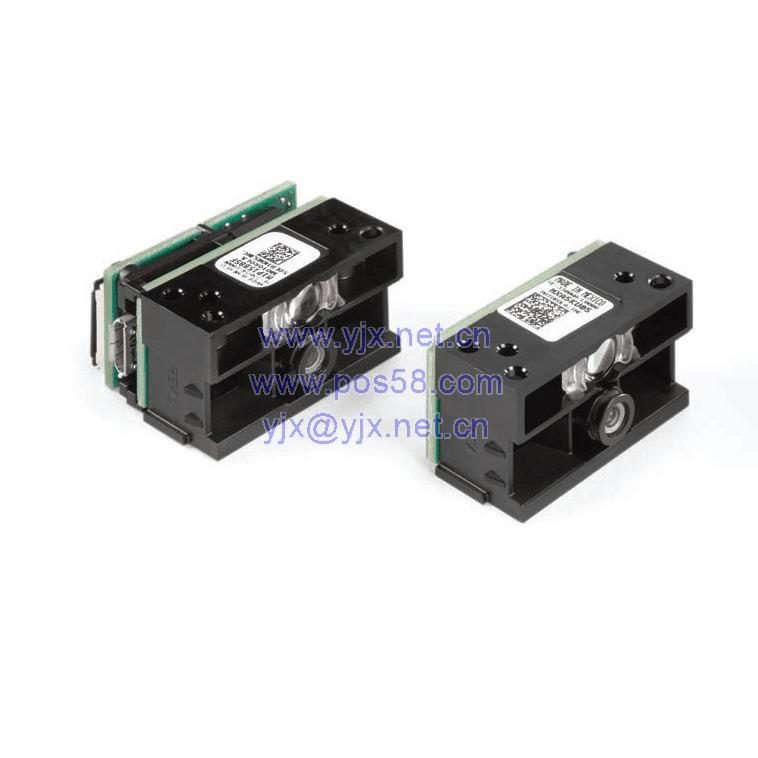

MOTOROLA SE330X
MOTOROLA SE330X
REDUCE PRODUCT DEVELOPMENT COST AND IMPROVE YOUR MARGINS
HIGH PERFORMANCE COST-EFFECTIVE
ENTERPRISE-CLASS SCANNING
When your products need to capture 1D and 2D bar codes,
the Motorola SE330X scan engine delivers the same
high-quality performance that drives Motorola’s continued
leadership in the bar code scanning industry — all in a
very affordable package. You get first-time every time
scanning of even damaged and poorly printed bar codes;
the ability to read bar codes that are printed on paper
labels or displayed on the screen of a mobile phone or
computer; and the rapid scanning speed that protects
worker productivity and the customer experience. With
the SE330X, you can create products that will make a
difference for your customers — and their customers.
Create kiosks and handheld mobile devices that can scan
lottery tickets, coupons and loyalty cards displayed on
mobile phones that improve customer service quality and
self-checkout times. And help reduce errors and improve
care quality with bar code-enabled medical equipment,
such as insulin meters and blood carousels.
BAR CODE SCANNING MADE EASY
FOR WORKERS AND CUSTOMERS
When workers or customers are scanning bar codes,
the SE330X makes it easy — no training is required.
Users do not need a steady hand or to pause
between scans. There is no need to align bar code
and scanner. The bright LED dot makes it easy to
aim. The result is easy first-time every-time capture
of bar codes that are near and far.
SIMPLE TO INTEGRATE
Numerous features make it easy to integrate
the SE330X, from flexible mounting options
and thorough documentation to a scan engine
development board. With a multitude of software
configuration options, you can easily optimize the
performance of the SE330X for your application
— from scan timing to the ability to customize the
brightness of the aiming pattern and illumination to
fit different available light levels.
FEATURES
Captures 1D and 2D
bar codes and images
Flexibility to support
many applications
Excellent motion tolerance
Patent-pending fast-pulse
illumination eliminates hand
jitter and enables rapid-fire
continual bar code scanning
Three models for
application flexibility
The standard model is ideal
for handheld use, and offers
the longest read range;
the wide angle model is
designed for fixed-mount and
public-facing applications; the
high-density model excels at
reading the small and very
dense bar codes common in
component manufacturing
and healthcare
Omni-directional
scan pattern
No need to align bar code
and scanner, ensuring user
comfort and protecting
worker productivity
Unique LED aiming system
Focused amber-colored crisp
‘spot’ for accurate aiming and
first time bar code capture
Flexible mounting options
Can be mounted from top
or bottom
PHYSICAL CHARACTERISTICS
Dimensions SE3300: 0.67 in. H x 1.18 in. W x 0.68 in. D
17 mm H x 30 mm W x 17.3 mm D
SE3307: 0.67 in. H x 1.18 in. W x 1.02 in. D
17 mm H x 30 mm W x 26 mm D
Weight SE3300: 0.22 oz./6.1 g
SE3307: 0.36 oz./10.2 g
Interface SE3300: Camera port on 21-pin ZIF connector
SE3307: 31-pin ZIF connector (0.3 mm pitch), micro
USB B
PERFORMANCE CHARACTERISTICS
Sensor
Resolution
752 x 480 pixels
Field of View SR, HD: Horizontal - 40°, Vertical - 25°
WA: Horizontal - 46°, Vertical - 30°
Angular
Tolerance
Skew: ±60°; Pitch: ±60°; Roll: 360°
Aiming LED 617 nm LED, dot optical power: 0.19 mW typical
Illumination 2x 625 nm LEDs
USER ENVIRONMENT
Operating Temp. -22° F to 122° F/-30° C to 50° C
Storage Temp. -40° F to 158° F/-40° C to 70° C
Humidity Operating: 95% RH, non-condensing at 122° F/50° C
Storage: 85% RH, non-condensing at 158° F/70° C
Ambient Light Maximum 86,100 Lux. (direct sunlight)
Power SE3300: Operational input voltage: Engine: 3.3V ±10%;
Current draw with illumination and aiming: 250 mA
(WA), 275 mA (SR, HD)
SE3307: Operational input voltage: 3.3V +-10% or 5V
+/- 10%; Current Draw: 280 mA avg. during scanning,
3.3V input)
PRODUCT SPEC SHEET
MOTOROLA SE330X
SPECIFICATIONS
USER ENVIRONMENT (CONTINUED)
Shock Rating 2000 G ±5%, any mounting surface, at 32°, 68°, 122°
F/ 0°, 20° and 50° C for 0.85 ±0.05 ms
DECODE RANGES
Typical Working Ranges
SR Focus Range Near Far
5.0 mil Code 39 1.5 in./3.8 cm 8.2 in./20.8 cm
6.67 mil PDF417 2.2 in./5.5 cm 7.5 in./19.1 cm
10 mil Datamatrix Field of view limited 8.9 in./22.7 cm
100% UPC-A 1.9 in./4.9 cm 17.5 in./44.4 cm
15 mil PDF417 Field of view limited 14.4 in./36.6 cm
WA Focus Range Near Far
5.0 mil Code 39 1.7 in./4.3 cm 7.0 in./17.7 cm
6.67 mil PDF417 2.2 in./5.5 cm 6.5 in./16.6 cm
10 mil Datamatrix Field of view limited 7.6 in./19.3 cm
100% UPC-A 1.6 in./4.2 cm 13.2 in./33.5 cm
15 mil PDF417 Field of view limited 10.7 in./27.2 cm
HD Focus Range Near Far
3 mil Code 39 1.5 in./3.8 cm 5.0 in./12.6 cm
4 mil PDF417 1.8 in./4.6 cm 3.9 in./10.0 cm
5 mil Code 39 1.1 in./2.7 cm 6.3 in./15.9 cm
5 mil Datamatrix 1.7 in./4.4 cm 4.0 in./10.3 cm
6.67 mil PDF417 1.3 in./3.4 cm 4.9 in./12.5 cm
REGULATORY
Laser
Classification
Intended for use in CDRH Class II/IEC 825 Class
1M devices
Electrical Safety UL, VDE, and CU recognized component
Environmental Compliant with RoHS
WARRANTY
Subject to the terms of Motorola’s hardware warranty statement, the
SE330X is warranted against defects in workmanship and materials
for a period of 15 months from the date of shipment. For the complete
Motorola hardware product warranty statement, go to:
www.motorolasolutions.com/warranty
Part number: SS-SE330X. Printed in USA 11/12. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo
are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other
trademarks are the property of their respective owners. ©2012 Motorola Solutions, Inc. All rights reserved.
DECODE OPTIONS PROVIDE MAXIMUM
INTEGRATION FLEXIBILITY
Hardware and software decode options allow you to
choose the decoder strategy that best fits your product
designs. Our PL3307 hardware decoder family allows
you to choose the form factor that best meets the
needs of your product designs — a standalone circuit
board that connects to your board or a microchip that
is soldered to your main circuit board. Want it already
integrated? Choose the SE3307, which comes with
the decoder already embedded and ready to go. And if
component costs, battery power and product margins
are a concern, we offer a purely software decode
option — no hardware required.
For more information on how the high-performance SE330X scan engine can improve your
products and your margins, visit www.motorolasolutions.com/SE3300 or access our global
contact directory at www.motorolasolutions.com/contactus
