BASIC INFO
-
- Fastest printer in its class even in full-graphic mode
- Easily handles thick paper and tickets up to 180 um (7.1 mils)
- Offered with Epson BA-T500II controller board with both serial and parallel interfaces
- High-speed drivers for Windows 95/98 and NT 4.0
- Curl or straight paper path for thick roll or card paper
- Long-life autocutter with choice of full or partial cut
- Resident bar codes and downloadable graphics for label and ticket printing
- One-hand paper loading and jam-resistant

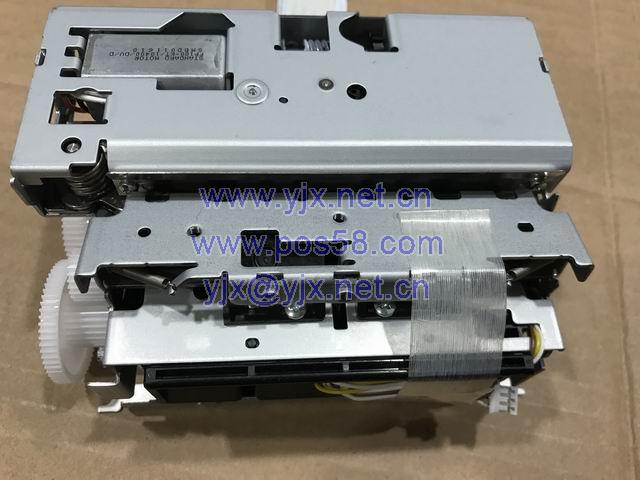

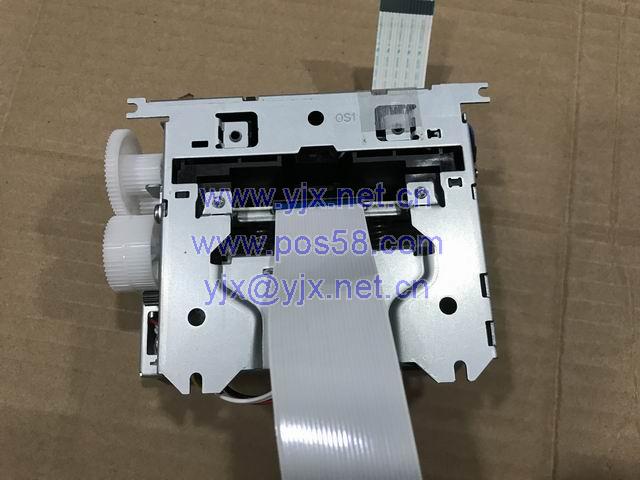

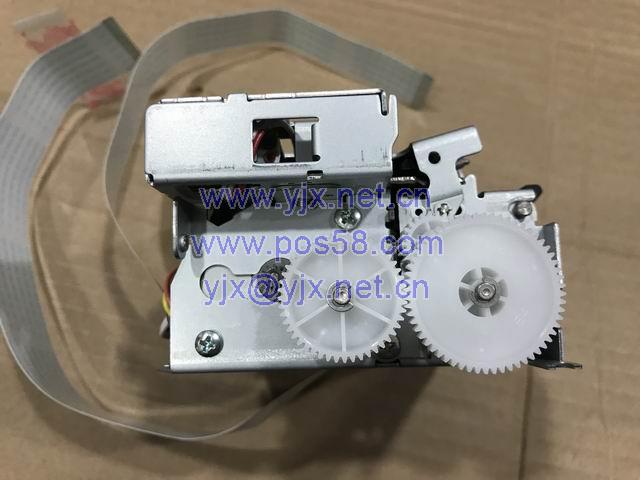

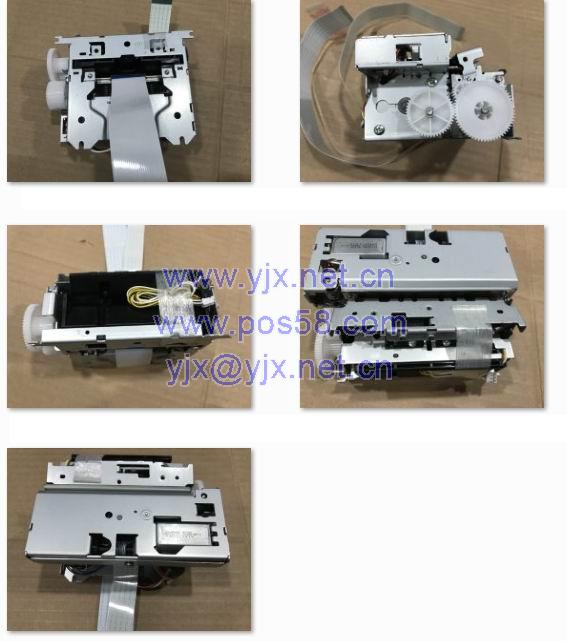

Thermal Mini Printers |
|||||||||
|
M- T512IIA |
M- T513IIA |
M- T522IIA |
M- T523IIA |
M- T532IIA |
M- T533IIA |
M- T542IIA |
M- T543IIA |
||
| PRINTING METHOD |
Thermal line
|
||||||||
| PAPER PATH | Straight | Separate | Straight | Separate | Straight | Separate | Straight | Separate | |
| RESOLUTION |
203 dpi
|
||||||||
| PRINT SPEED |
Max. 250 mm/s
|
||||||||
| PAPER WIDTH | 57.5 ± 0.5 mm | 59.5 ± 0.5 mm | 79.5 ± 0.5 mm | 82.5 ± 0.5 mm | |||||
| MAX ROLL DIA. |
Max. 254 mm
|
||||||||
| PAPER THICKNESS |
0.056 to 0.150 mm |
0.056 to 0.096 mm |
0.056 to 0.150 mm |
0.056 to 0.096 mm |
0.056 to 0.150 mm |
0.056 to 0.096 mm |
0.056 to 0.150 mm |
0.056 to 0.096 mm |
|
| POWER |
24 VDC ± 2.4 V
|
||||||||
| POWER CONSUMPTION | Approx. 2.2 A (mean current) | Approx. 3.0 A (mean current) | |||||||
| OPERATING TEMPERATURE |
-20 to 70°C (Print quality is guaranteed from 5 to 50°C)
|
||||||||
| OPERATING HUMIDITY |
10 to 80 %
|
||||||||
| MCBF |
37,000,000 lines
|
||||||||
| PRINTER LIFE |
Mechanism : 15,000,000 lines, Thermal head : 100 km
|
||||||||
| RELIABILITY OF CUTTER |
1,000,000 cuts (750,000 cuts when 30°C or above, and 60 %RH or above)
|
||||||||
| OVERALL DIMENSIONS | 102.9 (W) × 91.9 (D) × 57.5 (H) mm |
126.9mm (W) × 91.9mm (D) × 57.5mm (H) |
126.9mm (W) × 94.9mm (D) × 57.5mm (H) |
126.9mm (W) × 91.9mm (D) × 57.5mm (H) |
126.9mm (W) × 94.9mm (D) × 57.5mm (H) |
||||
| WEIGHT | Approx. 450 g | Approx. 510 g | Approx. 540 g | Approx. 510 g | Approx. 540 g | ||||
| AUTOCUTTER |
Scissors-type autocutter Mounted
|
||||||||
| POWER SUPPLY |
PS-180 (option)
|
||||||||
| BLACK MARK DETECTOR |
Option
|
||||||||
| PAPER JAM DETECTOR | Standard | Option | Standard | Option | Standard | Option | Standard | Option | |
|
dpi: dots per 25.4 mm (dots per inch)
|
|||||||||
| BA-T500IIS | BA-T500IIP | BA-T500IIU | BA-T500IIE | ||||||
| SUPPORTED PRINTER |
M-T500II Series
|
||||||||
| PRINTING CHARACTER |
Text (Europe Symbol available), Bar code, Graphics
|
||||||||
| PRINT FONT |
ANK, JIS X0208-90, GB18030-80, BIG5, KSC-5601C
|
||||||||
| FONT |
ANK FontA: 12 24, Font B: 9 17, Kanji FontA: 24 24, FontB(JIS/KSC): 16 16
|
||||||||
| COLUMN CAPACITY |
M-T512II, M-T513II (Paper Width : 57.5mm) ANK FontA : 36 / ANK Font B : 48
M-T522II, M-T523II (Paper Width : 59.5mm) ANK FontA : 37 / ANK Font B : 49 M-T532II, M-T533II (Paper Width : 79.5mm) ANK FontA : 48 / ANK Font B : 64 M-T542II, M-T543II (Paper Width : 82.5mm) ANK FontA : 53 / ANK Font B : 71 |
||||||||
| CHARACTER SIZE |
FontA : 1.25 (W) 3.0 (H) mm / FontB : 0.88 (W) 2.13 (H) mm
|
||||||||
| CHARACTER SET |
95 Alphanumeric, 65 International, 128 43 Graphics
|
||||||||
