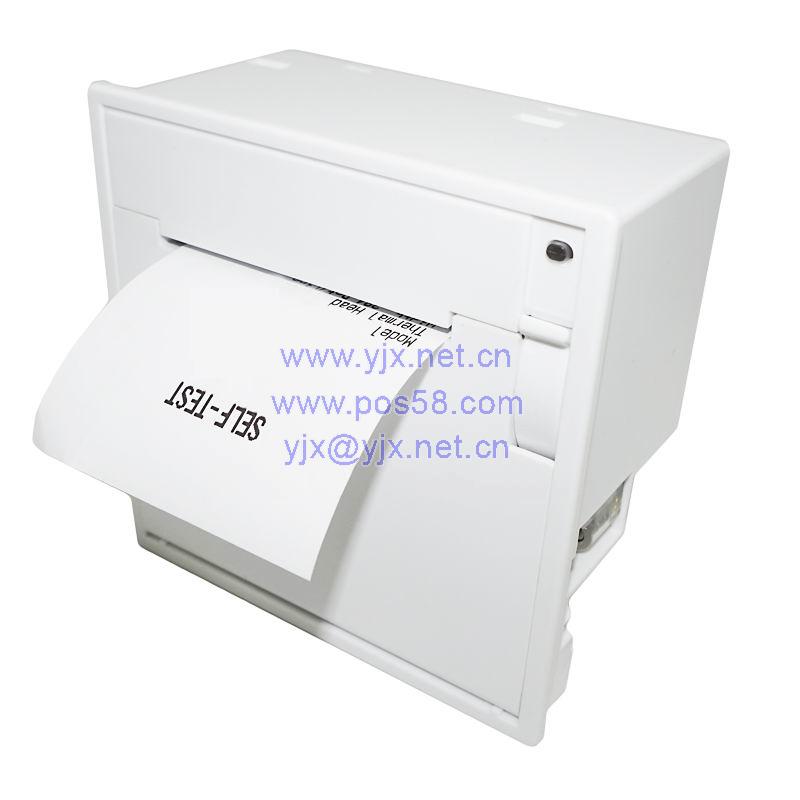

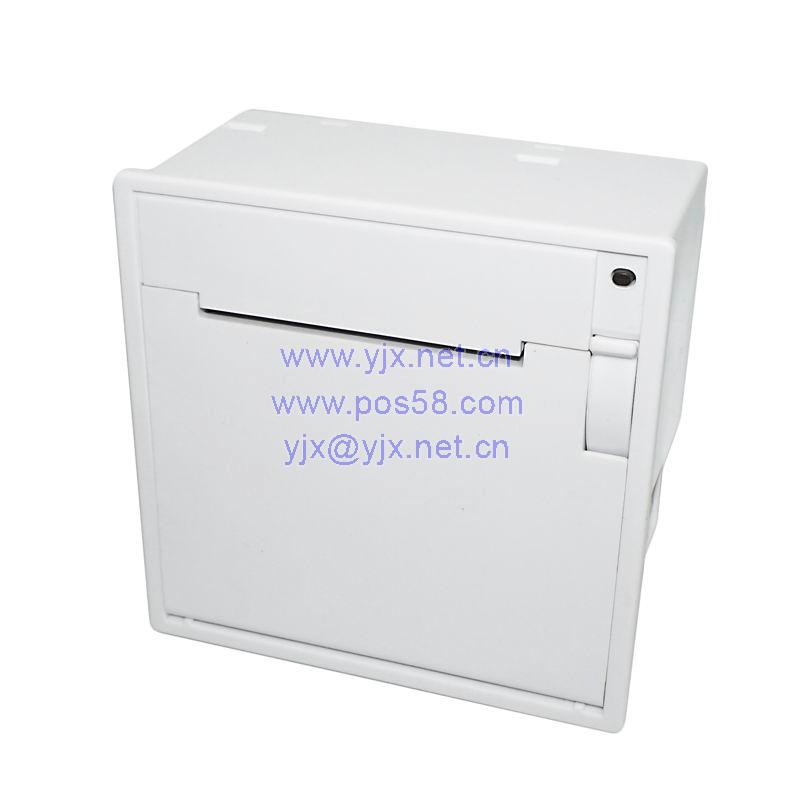

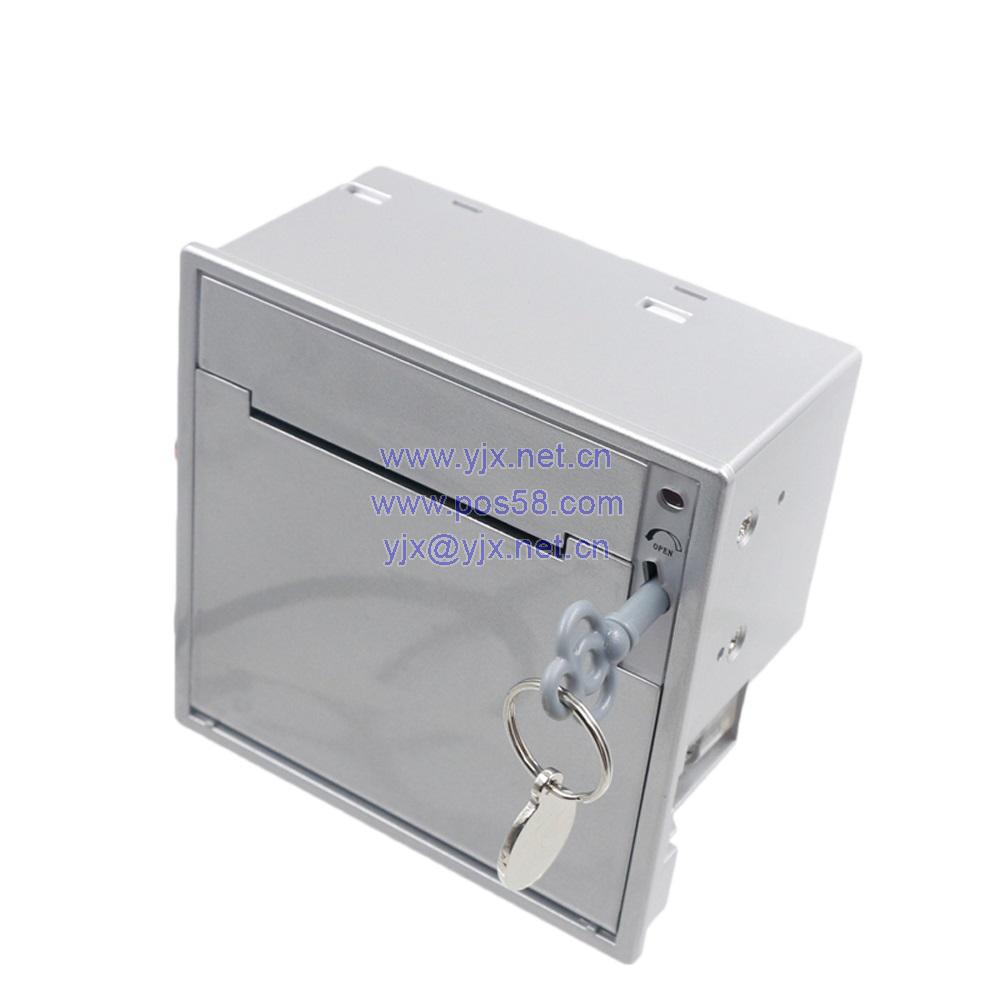

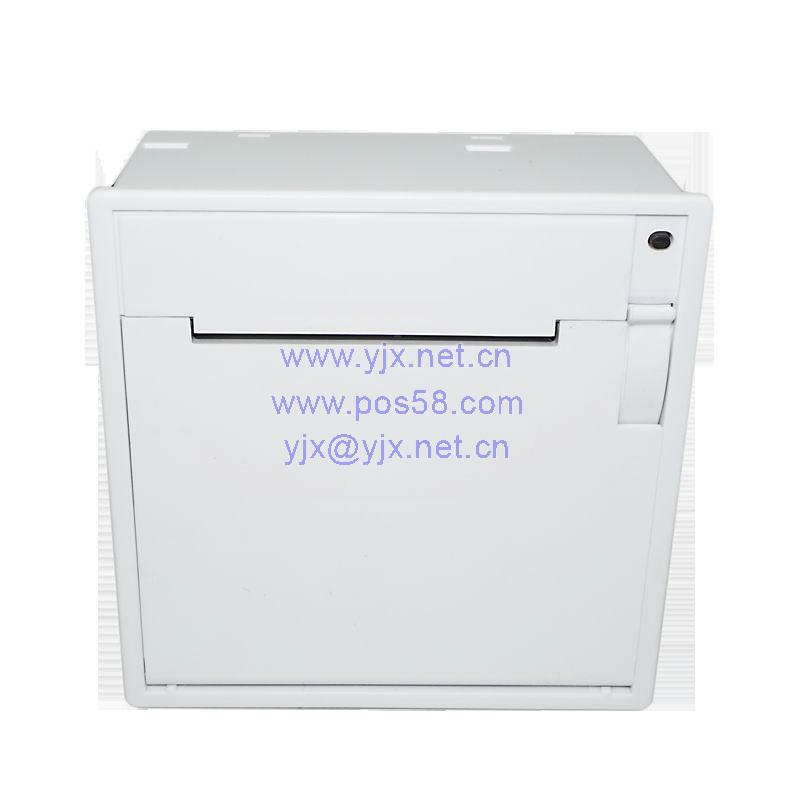

2 Inch Cheap Mini Thermal Receipt Printer Mirco Panel Printer With Serial rs232 TTLUSB
Features:
-
Brand name printer mechanism
-
Super big roll bucket diameter Max 56 mm
-
Compact front panel mounted structure
-
Unique heat dissipation system
-
"anti-static" circuit design
-
Multiple panel LED indication
-
Available customization shell color
Specification
|
Model |
YJX-FPT201 |
|
|
Mechanism |
Printing method |
Thermal dot line |
|
Dot numbers(dots/line) |
384 dots/line |
|
|
Resolution (dots/mm) |
8 dot/mm |
|
|
Printing speed(mm/s) |
100 mm/s |
|
|
Paper width(mm) |
58 |
|
|
Printing width(mm) |
48 |
|
|
Roll diameter max |
||
|
Paper thickness |
60~80 μm |
|
|
Paper loading method |
Easy loading |
|
|
Auto cutting |
YES |
|
|
sensor |
Printer head |
thermistor |
|
Paper end |
Photo interrupter |
|
|
Power feature |
Working voltage(Vp) |
DC 24V |
|
Power consumption |
2A(average) |
|
|
Peak current |
4A |
|
|
Environment |
Working temperature |
-10~60℃ |
|
Working humidity |
20~85%RH |
|
|
Storage temperature |
-20~60℃ |
|
|
Storage humidity |
10~90%RH |
|
|
Reliability |
Cutter life (cuts) |
1,200,000 |
|
Pulse |
100,000,000 |
|
|
Printing length(km) |
Over 150 |
|
|
Property |
Dimension (mm) |
101×56×100 |
|
Weight (g) |
250 ±10 |
|
|
Support |
Interface |
RS-232C |
|
