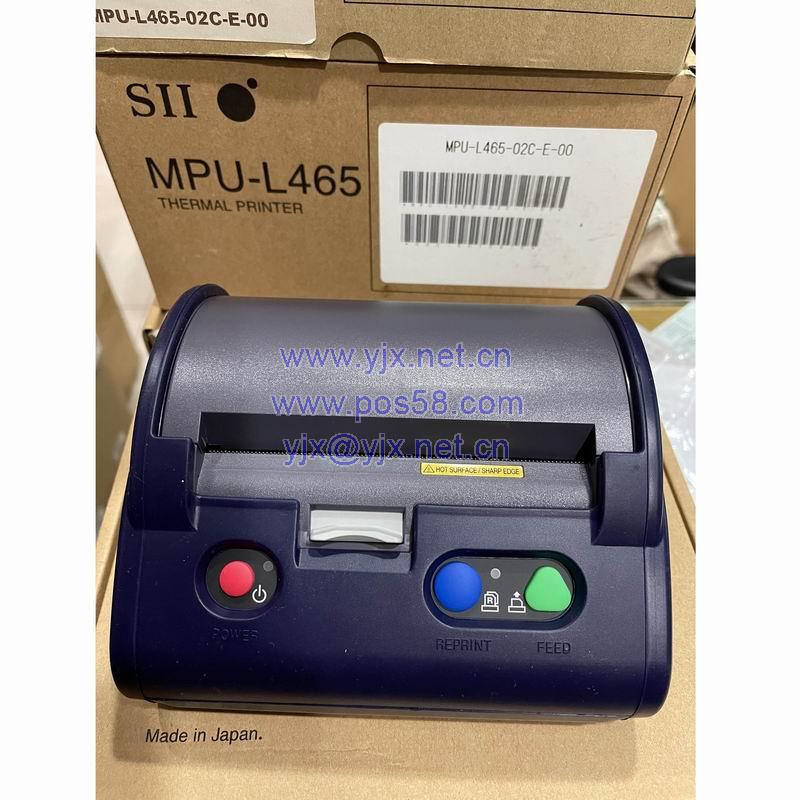

seiko MPU-L465-02C-E-00
Mobile Printer
Mobile Printer
MPU-L465 series
- Max printing speed: 85mm/sec
- High resolution: 300dpi
- Adjustable Paper width: 70 to 115mm
- Operating temperature: -15°C to 50°C
- Interface: Bluetooth®, USB, Serial
- Easy paper operation
- Windows® drivers (XP) *32bit
| Model | MPU-L465-02 | MPU-L465-16 | |
|---|---|---|---|
| Standard model | Bluetooth model | ||
|
*1 Excluding protrusion, including rubber cover. *2 Excluding strap, roll paper, battery and beltcrip. *3 Excluding strap and roll paper, including battery and belt clip. Windows® is the registered trademark of Microsoft Corporation(USA). Bluetooth® is a registered trademark of Bluetooth SIG, Inc. |
|||
| Printing | Methods | Thermal line dot printing | |
| Number of dots/line | 1280 | ||
| Resolution(dpi) | 300 | ||
| Paper width(mm) | 70 to 115 | ||
| Printing width(mm) | 108.4 | ||
| Speed(mm/sec)max | 85 | ||
| Outside diameter of paper roll (mm)max | Φ58 | ||
| Inside diameter of paper roll (mm) | Φ8.0, Φ12.0, Φ25.4 | ||
| Character matrix(H x W dots) | 24 x 12, 24 x 24, 36 x 18, 36 x 36 | ||
| Character size(H x W mm) | 2.03 x 1.02, 2.03 x 2.03, 3.05 x 1.52, 3.05 x 3.05 | ||
| Type of Paper | Roll Paper, Label roll paper | ||
| Character type | Extended graphics character, Katakana character, Optional font, Downloaded character, User-defined character, JIS1&2 level kanji | ||
| Barcode |
UPC-A/E, JAN(EAN)8/13, ITF,CODE39, CODABAR, CODE93, CODE128/EAN128, PDF417, QR Code, MaxiCode, Data Matrix |
||
| Power supply(V) | Li-ion Battery, Specified AC adapter | ||
| Communication interface | USB Ver. 1.1 | Yes | Yes |
| RS-232C | Yes | Yes | |
| Bluetooth SPP | No | Yes | |
| Input buffer | 4K bytes | ||
| Command | ESC/POS™ conformity | ||
| Operating Temperature(°C) | -15 to 50 | ||
| Service life(km) | 50 | ||
| Dimensions (W x D x H mm) | 168 x 155 x 87*1 | ||
| Mass(g) | Approx.760*2 | Approx.870*3 | |
| Standard | FCC, VCCI | ||
| Option |
Battery pack, AC adapter, Battery charger, AC cable, Belt clip, Strap, Serial cable, USB cable |
||
■ Optional units
Name Model
Specified Battery pack BP-L0725-A1
BP-L0720-A1-E
Specified AC adapter PW-0904-W2-E
Specified Single-battery charger
PWC-L07C1-W1*1
Specified AC cable*2
for Japan: CB-JP04-18A-E
for USA, Canada: CB-US04-18A-E
Specified Belt clip BLT-A01-1-E
Specified Shoulder belt STR-A02-1-E
Specified Serial cable IFC-S01-1-E
Specified USB cable IFC-U01-1-E
*1 When you are using PWC-L07C1-W1,
specified AC cable and specified AC adapter
PW-D0940-W1 are needed. *2 The shape of the power outlet differs from
country to country. Please confirm it before
use.
■ Paper
Name Model
Thermal paper TP-L465CXH
Thermal paper TP-L465CAH
Label thermal paper TL-L465NS
Label thermal paper TL-L465NP
Label thermal paper DTH9500 (MACtac)
(KL470-ST95)
If the recommended paper is not used, the
print quality or the thermal head life may be out
of specificatio
