UTP-58E

BASIC INFO

UTP-58E



Product features

  • Thin and lightweight (depth 61 mm, approx. 230 g)

  • 2 power supply system (AC adapter or power supply)

  • Compatible with Windows drivers

  • Easy to insert paper (easy operation)

  • Equipped with various barcodes

  • RoHS compliant

* Specifications and dimensions described are subject to change without notice for improvement.




specification

Model

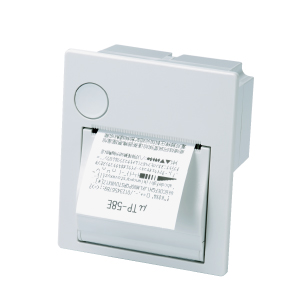

μTP-58E: Panel type

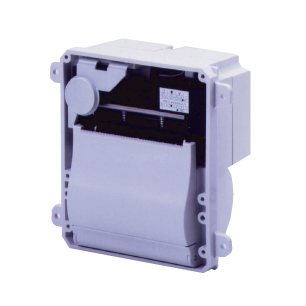

μTP-58EB: Panelless type (bulk type)

Printing method

Thermal line dot method

Total number of dots

Mode 1: 278 dots
Mode 2: 334 dots
Mode 3: 384 dots

Dot density

8 dots / mm

paper width

58mm

Print width

Mode 1: 34.75mm
Mode 2 : 41.75mm
Mode 3 : 48mm

Maximum printing speed

50 mm / sec

interface

Serial (RS-232C) / Parallel

Maximum number of print digits

Mode 1: 20 digits
Mode 2: 24 digits
Mode 3: 32 digits

Character composition / character dimensions

16-dot
half-
width characters: 16 x 8 dots / 2.0 x 1.0 mm Full-width characters: 16 x 16 dots / 2.0 x 2.0 mm
24-dot system
Half - width characters: 24 x 12 dots / 3.0 x 1.5 mm
Full-width characters: 24 x 24 dots / 3.0 × 3.0mm

Character type

Mode 1:
Katakana compatible characters, international characters, special characters
Mode 2:
Katakana compatible characters, international characters, special characters
Mode 3:
Katakana compatible characters, international characters, PC437 series,
Kanji (JIS 1st and 2nd level), download characters , Gaiji

barcode

JAN (EAN) 13/8, CODE39, ITF, CODABAR, CODE128, UPC-E

Receive buffer

4096 bytes

Environmental condition

Operating temperature: 0 ° C to + 50 ° C
Operating humidity: 30% RH to 80% RH (no condensation)
Storage temperature: -20 ° C to + 60 ° C
Storage humidity: 20% RH to 85% RH (no condensation)

lifespan

Pulse resistance 100 million pulses or more (printing rate 12.5%)
Abrasion resistance 50 km or more

Power supply

External power supply: DC5V to 9V 3A
AC adapter: DC9V 3A

Current consumption

Standby 100mA or less
Printing average 1.7A (maximum 3A)

External dimensions

μTP-58E: 101 (W) × 116 (H) × 61 (D) (mm)
μTP-58EB: 95 (W) × 110 (H) × 61 (D) (mm)

mass

About 230g

Other

Depth of built-in part 50 mm or less
