Recommemded thermal paper
Seiko Instruments Inc. recommends the following paper to best print.

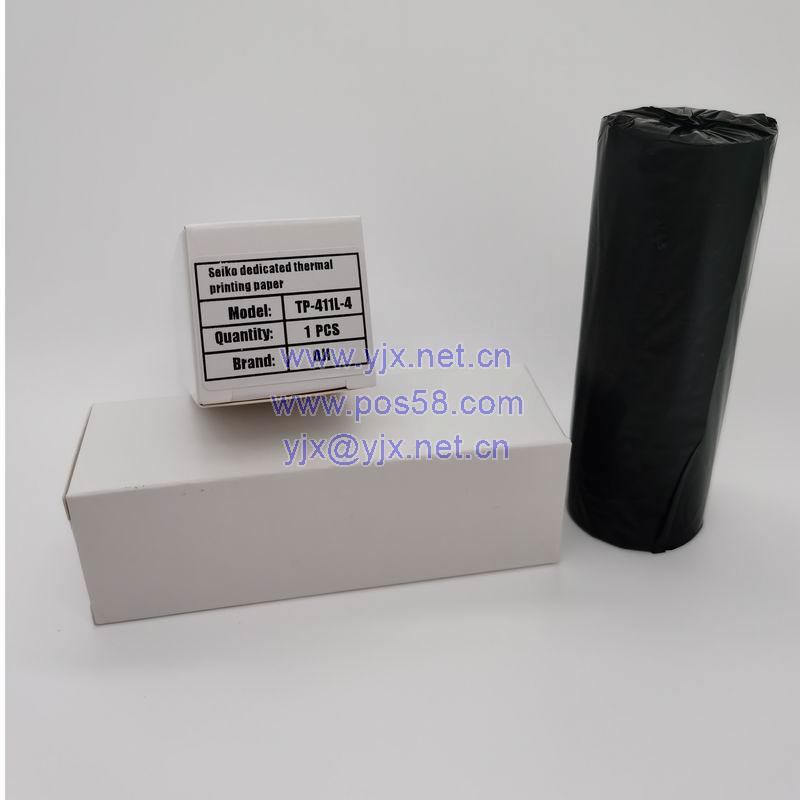

TP-411L-4
Recommended thermal paper
Printer Thermal paper
Specification
Paper width
(mm)
External diameter
(mm)
Internal diameter
(mm) Length (m) Roll/Box Core
CAPD245, LTPD245, LTPU245, LTPJ245
LTPA245, LTPC245, CAPC245, LTPH245 TP-322L 58 30 9 (9) 10
CAPD345, LTPD345, LTPV345 TP-V341L 80 48 9 (28) 10
LTPV445 TP-341L-1 112 48 9 (28) 10
CAPD247, LTPD247, LTP01,LTP02,
LTPG247, LTPF247 TP-211C-1 58 48 12 (25) 10
LTP04, CAPD347, LTPD347, LTPF347 TP-312C-1 80 48 12 (25) 10
LTP2242
TP-521C 60 48 12 (25) 10
TP-252C-1 60 50 12 (28) 10
LTP2342 TP-312C-1 80 48 12 (25) 10
LTP2442 TP-451C-1 112 48 12 (25) 10
DPU-S245 TP-S245L-1 58 38 9 (19) 10
DPU-S445 TP-341L-1 112 48 9 (28) 10
RP-B10, RP-E10, RP-D10
TP-E23C-1 58 80 12 (65) 10
TP-B10CH 80 80 12 (65) 10
MPU-L465
TP-L465CXH
TP-L465CAH
TL-L465NS (Label)
TL-L465NP (Label)
TL-L465KS (Label)
*Please contact us
DPU-3445
TP-341L-1 112 48 9 (28) 10
TP-343L-3 (High proof paper) 112 48 9 (28) 10
TS-341-125 (Thick paper 125mm) 112 - - 158 500 (Sheet)
TS-341-145 (Thick paper 145mm) 112 - - 158 500 (Sheet)
DPU-D2 TP-211C-1 58 48 12 (25) 10
DPU-D3 TP-312C-1 80 48 12 (25) 10
DPU-12 TP-201C-1 58 38 9 (18) 10
DPU-30 TP-211C-1 58 48 12 (25) 10
DPU-411, DPU-412, DPU-414
TP-411L-3 112 48 9 (28) 10
TP-411L-4 112 48 9 (28) 10
DPU-H245 TP-H241L 58 25 9 (7) 10
DPU-E247 TP-E23C-1 58 80 12 (65) 10
APU-G247 TP-E23C-1 58 80 12 (65) 10
APU-F247 TP-E23C-1 58 80 12 (65) 10
SAM-1245 TP-322L 58 30 9 (9) 10
MTP102 TP-102C-4 38 28 11.2 (8) 10
MTP201
TP-251L 58 48 9 (28) 10
TP-202L-4 58 25 9 (7) 10
MTP401
TP-312C-1 80 48 12 (25) 10
TP-401L-4 80 40 9 (20) 10
STP211
TP-211C-1 58 48 12 (25) 10
TP-211C-3 58 48 12 (25) 10
STP312
TP-312C-1 80 48 12 (25) 10
TP-312C-3 80 48 12 (25) 10
STP411
TP-451C-1 112 48 12 (25) 10
TP-451C-3 112 48 12 (25) 10
