NP-3511D-2

  • Product Item:NP-3511D-2
  • Category: Products
  • NP-3511D-2
  • PN13型
  • NP-M1301C
  • Product Manual:PN13型 NP-3511D-2 NP-M1301C
BASIC INFO
High reliability model
3 inch KIOSK printer

NP-3511D-2

  • 203dpi
  •
  • 24V駆動
  •
  • USBインターフェイス
  •
  • オートカッタ
  •
  • シリアルインターフェイス
  •
  • 厚紙
  •
  • Paper width 76mm
  •
  • Paper width 80mm
  •
  • Gradation print

Product features

  1. Printing speed up to 200 mm/sec.
  2. Operating temperature: -20 to +60 degrees Celsius
  3. 16 gray scale printing
  4. Supporting 2D barcodes (QR code model2 and PDF417) printing.
  5. Lock-free cutter (recovering automatically from locked state)
  6. Applicable for the thick paper (Paper thickness: 59 to 150 micrometres)

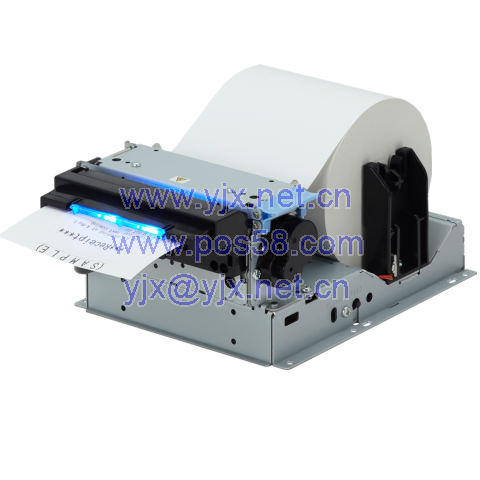

  7. Optional LED bezel is attachable.

Main specifications

Model name NP-3511D-2
Print speed 200 mm/sec.
Number of dots / Line 640 dots
Paper width 80 mm (Default), 76 mm
Print width 72 mm (Default), 80 mm
Paper diameter 83 mm (250 mm : to use optional paper holder: UPH-250)
Character International, English, Chinese, Greek, Polish, Russian, Scandinavian, Turkish, Japanese
Barcode UPC-A, UPC-E, EAN-8, EAN-13, CODE39,
CODABAR, ITF, CODE128, QR code (model 2), PDF417
Interface USB (V2.0 Full Speed) and Serial (RS232C)
Cutter Full cut and partial cut by the command
External dimensions 127 (W) x 150 (D) x 75 (H) mm
Options PS11-E/U, BEZ-330, BEZ-230, BEZ-231, UPH-LA, UPH-U250


  1. Power supply DC24V
