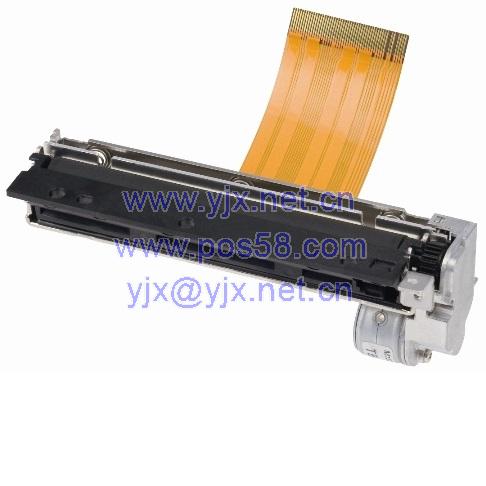

LTPD345F-576-E

  • Product Item:LTPD345F-576-E
  • Category: Products
  • LTPD345F-576-E
  • LTPD345F-576-E

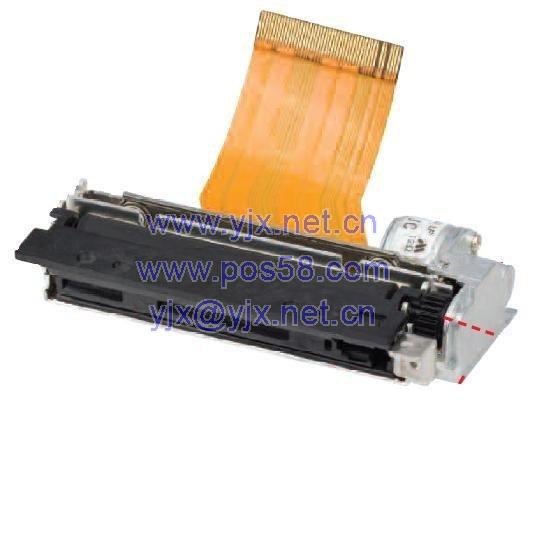

  • LTPD345B-576-E
  • Product Manual:LTPD345F-576-E|LTPD345B-576-E
BASIC INFO

Easy Paper Operation Mechanism Low Voltage

LTPD245 LTPD345

Thermal Printer Mechanism

LTPD245/345

  • High performance in compact design
  • Max. printing speed (LTPD245) : 100mm/sec
  • Platen latch function
  • Label printing *Under specific conditions only.
  • POS/ECR
  • EFT/POS
  • Measuring instrument
  • Barcode
  • Moble Printer
  • Label
  • Medical equipment
Model LTPD245 LTPD345
*1 Use recommended thermal papers. *2 Excluding protrusion. *3 -30˚C to 70˚C:supported by designated conditions only.
Printing Method Thermal line dot printing
Number of dots/line 384 576
Resolution (dots/mm) 8
Paper width (mm) 58+0-1 80+0-1
Printing width (mm) 48 72
Speed (mm/sec) max 100 80
Paper path Curved
Detection Head temperature By thermistor
Platen position By mechanical switch
Out of paper By photo interrupter
Power supply (V) Operation voltage (Vdd) 2.7 to 3.6 / 4.75 to 5.25
Operation voltage (Vp) 4.75 to 9.5
Peak current (A) Head 3.66 (9.5V / 64dots)
5.49 (9.5V / 96dots)
3.60 (9.5V / 64dots)
5.40 (9.5V / 96dots)
Motor 0.6
Service Life Pulse activation (pulse) 100 million
Abrasion resistance (km) 50*1
Operating temperature (˚C) -10 to 50*1 *3
Dimensions (W×D×H mm) Horizontal 69.0 × 30.0 × 15.0*2 91.0 × 30.0 × 15.0*2
Vertical 69.0 × 15.0 × 30.0*2 91.0 × 15.0 × 30.0*2
Mass (g) Approx. 40 Approx. 58

Interface
Model IFD501-01UK IFD501-01SK
*4 Please see "Associated software tool" for details.
CPU PTD50P01
Thermal printer LTPD245、LTPD345、
CAPD245、CAPD345
Operating voltage (V) Vp: 4.75 to 9.5
Character matrix
(H×W dots)
16 dots characters: 16 × 8, 16 × 16
24 dots characters: 24 × 12, 24 × 24
Character type Extended graphics character set,
Katakana character set 1,
Katakana character set 2,
Codepage 1252, User page,
Downloaded character,
Optional font,
JIS 1st and 2nd level kanji,
User-defined character
Communication interface USB (2.0) Serial (RS-232C)
Dimensions
(W×D×H mm)
69.0 × 50.0 × 14.0
Software*4 Printer Driver/SDK,
Linux® CUPS Filter/SDK
CPU
Model PTD50P01
*5 CG ROM: Japanese
*6 Please see "Associated software tool" for details
