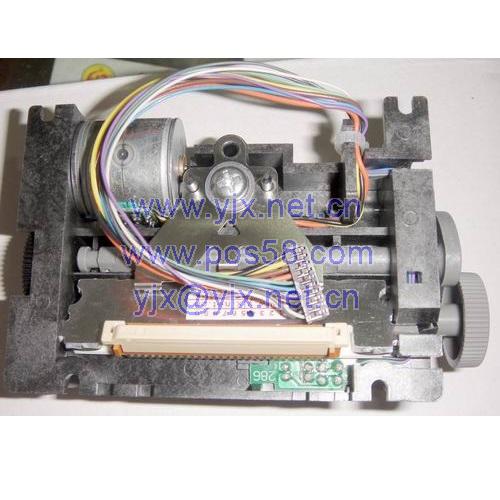

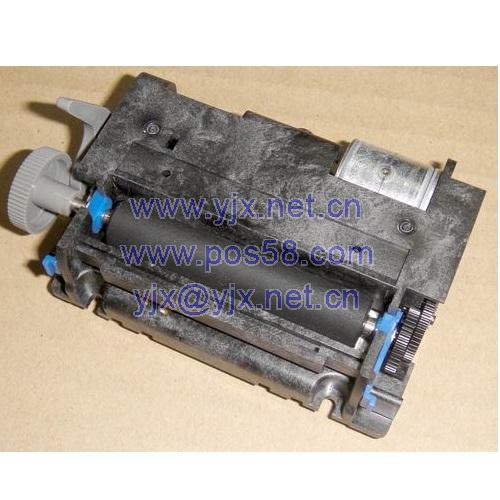

LT-286  58 mm thermal printer mechanism
58 mm thermal printer mechanism

58 mm paper width
5V operation
Print speed: Max. 50mm/sec

Compact design

LINE THERMAL PRINTER MECHANISMS

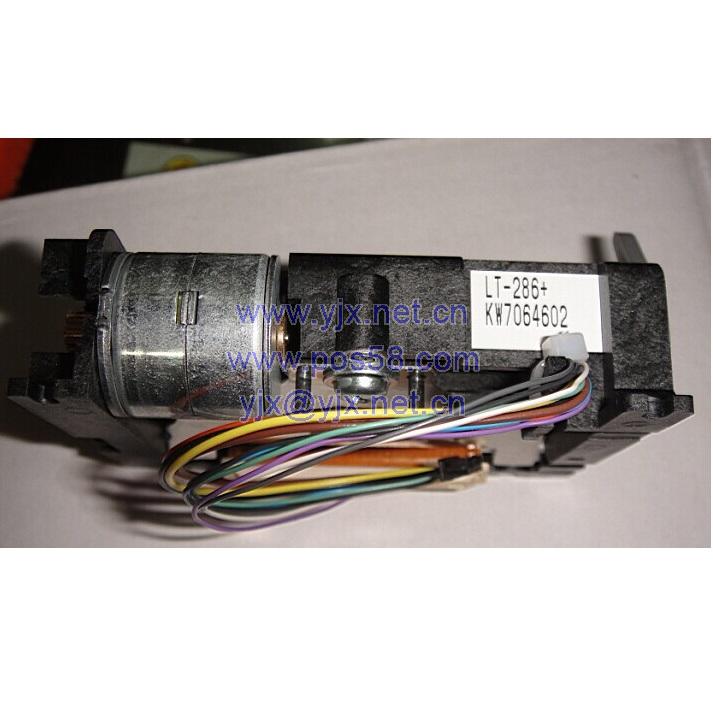

LT-286

LT-286

Features

• 58 mm paper width
• 5V operation
• Print speed: Max. 50mm/sec
• Compact design

Specifications

Printing method		Thermal dot line printing method
Total dots		384 dots/line
Dot density		8 dots/mm
Printing width		48mm
Printing speed		Max. 50mm/sec. (400 dot-lines/sec)
Paper feeding pitch		0.125mm
Sensors	PE sensor	Photo-interrupter
	Head temperature	Thermistor
	Head-up	Mechanical switch
Operating voltage *1	VH	DC 4.2 to 8.5V
	Vdd	DC 4.75 to 5.25V
Current consumption	Head (VH=5V)	Max.: 2.3A approx.
	Motor (VH=5V)	Max.: 0.5A approx.
Recommended paper	Width	58 mm
	Thickness	60 to 72µm
	Paper diameter *2	φ83mm or less
	Paper (Manufacturer)	KF50-HAD (Shin-Oji)
Reliability *3	Head pulse-resistance	50 million pulses or more
	Haed wear-resistance	50km or more
Environment	Operation	Temperature: 0 to 45°C Humidity: 35 to 85% RH
	Storage	Temperature: -20 to 60°C Humidity: 10 to 90% RH
External dimensions		75 (W) × 56.5 (D) × 21 (H) mm
Weight		Approx. 82g

(*1): Voltage drop at maximum current may cause the print quality problem. Please check it carefully in your environment such as control board, wiring, etc. Also please keep the voltage within the speci? ed voltage range even by the voltage drop.

(*2): The number of diameter varies depending on the conditions.

(*3): Normal temperature at 25°C, normal humidity, 12.5% printing ratio, rated energy and by use of the recommended print paper.
