FTP-68EMCL501  FTP-68EMCL101/112/151/161/162

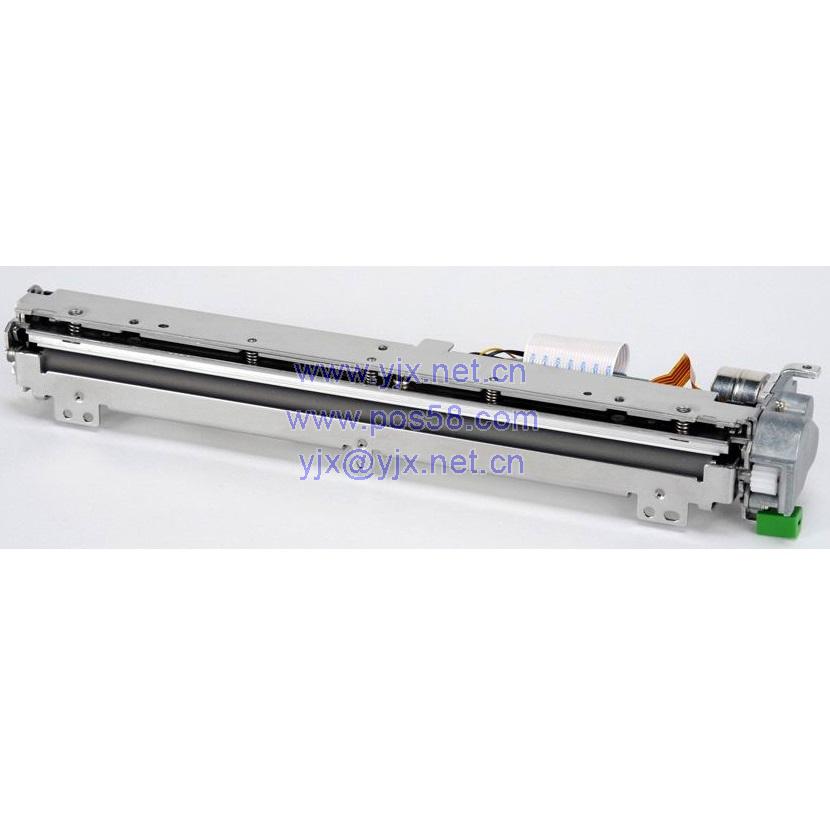

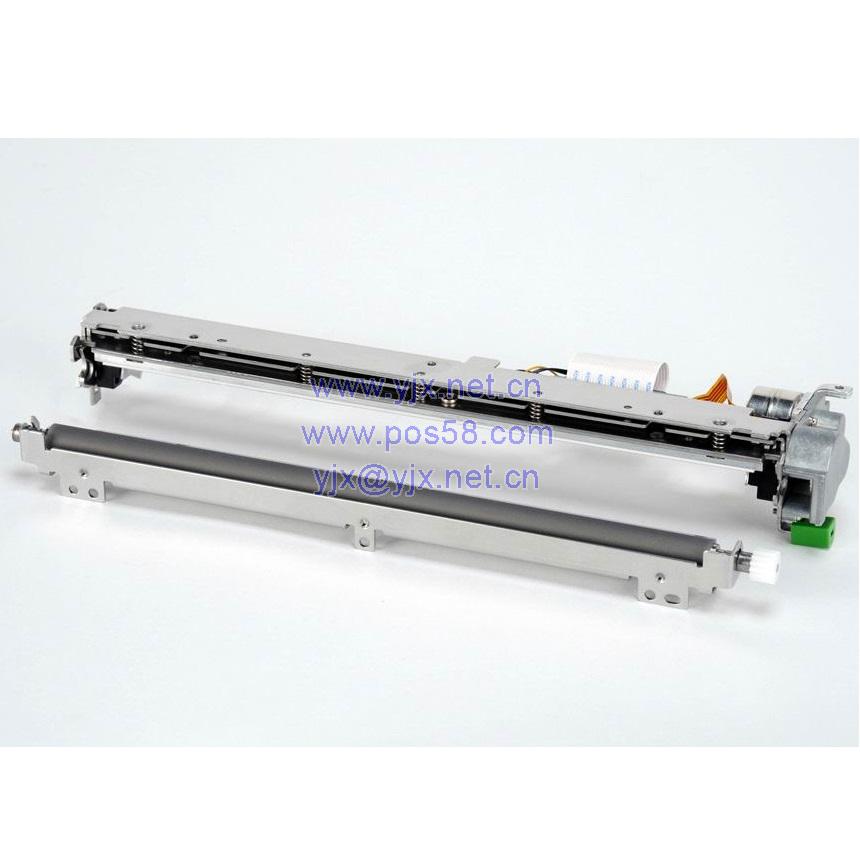

Data Sheet FUJITSU Component Thermal Printer FTP-68EMCL101/112/151/162 FUJITSU Component Thermal Printer FTP-68E Series (8-inch thermal printer) Fujitsu 24V, 8” high or low speed, easy loading thermal printer Page 1 of 8 Overview The FTP-68EMCL Series is an 8", ultra compact 24V thermal printer . Our unique platen removal design allows easy access for both loading paper and maintenance. Both high speed and low speed versions are available. The FTP-68EMCL Series can be used for a variety of applications such as test & measurement equipment, informational kiosks, ticket issuing terminals, label printers and medical equipment. Features ■ Platen open structure Paper jam-free / easy maintenance ■ Multi-feature metal frame The rugged metal frame provides excellent ESD performance, is shock/ vibration resistant and the heat-sink allows for continuous printing ■ 8-inch (A4) wide paper width ■ Label paper available Straight paper pass ■ Printing speed HIGH SPEED: FTP-68EMCL101/112: it can print at 80mm/s LOW SPEED: FTP-68EMCL151/162: it can print at 10mm/minute (max. 50mm/s) ■ UL File No. E171434 ■ RoHS compliant FTP-68EMCL101 (lever cap is optional) Data Sheet FUJITSU Component Thermal Printer FTP-68EMCL101/112/151/162 Page 2 of 8 Item Part Number Printer mechanism FTP-68EMCL001/051 (without adaptor board, without lever cap) (DISCONTINUED) FTP-68EMCL101/151 (with adaptor board, without lever cap) FTP-68EMCL112/162 (with adaptor board, with lever cap) Lever cap (optional) FTP-68EMP0495 LSI for driving Under developmnet Interface board FTP-62EDSL101#01-R (Font: ANK, Thai, JIS Kanji, Traditional Chinese) FTP-62EDSL101#02-R (Font: ANK, Thai, Traditional Chinese) Cables USB FTP-629Y301-R Head FTP-62EY001-R Power FTP-629Y601-R Item Specifications Part number FTP-68EMCL101/112/151/162 Printing method Thermal-line dot method Dot structure 1728 dots/lines (effective printing dot number 1696 dot/lines) Dot pitch (horizontal) 0.125mm (dot density 8 dots/mm) Dot pitch (vertical) 0.125mm (dot density 8 dots/mm) Effective printing area 212 mm Paper Width 210-216mm Thickness 60-100µm Operating voltage For print head 24V ±10% (480 dots, current peak 8.0A ) For motor MCL101/112 24V ±10% current: 1 phase 0.6A, 2 phase: 1.2A MCL151/162 24V ±10% current: 1 phase 0.4A, 2 phase: 0.8A For logic 3.3V or 5V ±5% (3.3 ±5%, 5V ±5%) 0.2A maximum Printing speed MCL001/101/112 (high speed) Max. 80mm/sec. (640 dotlines/sec.)* MCL051/151/162 (low speed) 10mm/min - 50mm/sec. ** Dimensions MCL001/101/112 262.0 x 55.2 x 26.0mm (WxDxH, except lever) MCL051/151/162 273.8 x 57.9 x 30.0mm (WxDxH, except lever) Weight (Printer mech) MCL001/101/112 Approximately: 560g (MCL001), 570g (MCL101/112) MCL051/151/162 Approximately: 565g (MCL051), 575g (MCL151/162) Head life Pulse resistance: 100 million pulse/dot Abrasion resistance: paper traveling distance 100km (print ratio: 12.5% or less) Operating environment Operating temperature*** 00C to 500C Operating humidity**** 20 to 85% RH Storage temperature -100C to +600C Storage humidity 5 to 90% RH Detection function Head temperature detection Thermistor Paper out / mark detection Photo sensor Recommended thermal sensitive paper High sensitive paper TF50KS-E Standard paper PD150R, TF60KS-E Medium life storage paper PD170R, TP60KS-F1, P220VBB-1 Long life storage paper PD160R *: At 250C high speed mode, using specified thermal paper **: At 25°C batch printing mode, using specified thermal paper ***: +50 to +400C printing density assurance range ****: Gradual decrease 12 to 52%RH in the range of +40°C to +50°C Data Sheet FUJITSU Component Thermal Printer FTP-68EMCL101/112/151/162 Page 3 of 8 Print Speed Part Number Paper Thickness (recommended paper) Sensor FPC Adaptor Lever Cap Dimension Specifications Paper Detection Mark (hole) Detection High FTP-68EMCL101 60 to 100µm With None With None Please see page 4 FTP-68EMCL112 With With With With Please see page 5 Low FTP-68EMCL151 With None With None Please see page 4 FTP-68EMCL162 With With With With Please see page 5 ■ Part Number Specifications Data Sheet FUJITSU Component Thermal Printer FTP-68EMCL101/112/151/162 Page 4 of 8 Unit: mm FTP-68EMCL101 - High Speed Unit: mm FTP-68EMCL151 - Low Speed Note: 1. Dimensions are nominal value, tolerance ±0.5mm unless otherwise specified. Note: 1. Dimensions are nominal value, tolerance ±0.5mm unless otherwise specified. A-A cross reference Platen Head 16.25 1.5 2.6 55.2 26.0 Connector A A 260.0 135.7 15.4 134.2 218.0 FTP-68EMCL101-R A-A cross reference Platen Head 16.25 1.5 4.0 57.9 26.0 (30.0) 134.2 15.4 218.0 Connector A A 149.5 273.8 FTP-68EMCL151-R Data Sheet FUJITSU Component Thermal Printer FTP-68EMCL101/112/151/162 Page 5 of 8 FTP-68EMCL112 - High Speed FTP-68EMCL162 - Low Speed Note: 1. Dimensions are nominal value, tolerance ±0.5mm unless otherwise specified. Note: 1. Dimensions are nominal value, tolerance ±0.5mm unless otherwise specified. A-A cross reference Platen Head 20.45 7.0 2.6 55.2 26.0 16.9 135.7 218.0 135.7 A A 260.0 Connector FTP-68EMCL112-R Unit: mm A-A cross reference Platen Head 20.45 7.0 4.0 57.9 26.0 (30.0) Connector A A 135.7 16.9 218.0 149.5 273.8 FTP-68EMCL162-R Unit: mm Data Sheet FUJITSU Component Thermal Printer FTP-68EMCL101/112/151/162 Page 6 of 8 No Signal I/O Contents 1 VH I Thermal head power supply 2 VH I 3 VH I 4 VH I 5 DO I Data out 6 /LAT I Data latch 7 CLK I Clock 8 VDD I Logic power 9 /STB1 I Head strobe 1 signal 10 /STB2 I Head strobe 2 signal 11 /STB3 I Head strobe 3 signal 12 GND - Thermal head power supply 13 GND - 14 GND - 15 GND - 16 GND - 17 GND - 18 GND - 19 GND - 20 HTMP - Thermistor 21 /STB4 I Head strobe 4 signal 22 /STB5 I Head strobe 5 signal 23 /STB6 I Head strobe 6 signal 24 DI I Data in 25 VH I Thermal head power supply 26 VH I 27 VH I 28 VH I ■ Printer FFC • Thermal head FPC (contact pitch 1mm) No Signal I/O Contents 1 MTMP - Motor temperature detection 2 GND - Motor temperature detection ground 3 MT_/A I Transporter motor /A excitation signal 4 MT_A I Transporter motor A excitation signal 5 MT_B I Transporter motor B excitation signal 6 MT_/B I Transporter motor /B excitation signal ■ Printer FFC • Mechanism side: 52610-0672 (Molex) FTP-68EMCL001/051 Data Sheet FUJITSU Component Thermal Printer FTP-68EMCL101/112/151/162 Page 7 of 8 ■ Printer FFC • Mechanism side: 52610-0672 (Molex) No Signal I/O Contents 1 MTMP I Motor temperature detection 2 GND - Motor temperature detection ground 3 MT_/A I Transporter motor /A excitation signal 4 MT_A I Transporter motor A excitation signal 5 MT_B I Transporter motor B excitation signal 6 MT_/B I Transporter motor /B excitation signal 7 VSEN I Paper sensor power 8 PHE O Paper sensor out 9 PHK O Paper sensor cathode 10 VSEN I Mark (hole) sensor power terminal* 11 PHE O Mark (hole) sensor output terminal* 12 PHK O Mark (hole) sensor cathode terminal* 13 HUP O Platen open detection 14 GND - 3.3V ground for the platen open sensor 15 VH I Thermal head power supply 16 VH I 17 DO O Thermal head data output Do not plug or unplug the FPC when power is on. *: FTP-68EMCL101/151: #10, 11, 12 are NOT CONNECTED No Signal I/O Contents 18 /LAT I Thermal head latch input 19 CLK I Thermal head clock 20 VDD I Thermal head logic power supply 21 /STB1 I Head strobe 1 signal 22 /STB2 I Head strobe 2 signal 23 /STB3 I Head strobe 3 signal 24 GND - Power ground 25 GND - 26 GND - 27 GND - 28 HTMP O Thermal head temperature detection 29 /STB4 I Head strobe 4 signal 30 /STB5 I Head strobe 5 signal 31 /STB6 I Head strobe 6 signal 32 DI I Thermal head data input 33 VH I Thermal head power supply 34 VH I ■ Printer connector (head extension connector board) PIN arrays • Adaptor board side: B34B-PHDSS (LF) (SN) (JST) Remote side: PHDR-34VS (JST) FTP-68EMCL101/151/112/162 No Signal I/O* Contents 1 GND - Ground 2 HUP O Platen open detection switch 3 PHK O Cathode for photo interruptor (paper sensor) 4 PHE O Emittor for photo interruptor (paper sensor) 5 VSEN I Paper sensor power ■ Paper sensor and platen open detection switch (1) • Connector used: BM03B-SRSS-TB (JST or equivalent) *: Output direction from mechanism side FTP-68EMCL001/051 No Signal I/O* Contents 1 GND - Ground 2 NC - Not connected 3 NC - 4 NC - 5 NC - 6 HUP O Platen open detection switch ■ Platen open detection switch (2) • Connector used: BM06B-SRSS-TB (JST or equivalent) *: Output direction from mechanism side Data Sheet FUJITSU Component Thermal Printer FTP-68EMCL101/112/151/162 Page 8 of 8 Contact Japan FUJITSU COMPONENT LIMITED Shinagawa Seaside Park Tower 12-4, Higashi-shinagawa 4-chome, Tokyo 140 0002, Japan Tel: (81-3) 3450-1682 Email: fcl-contact@cs.fcl-components.com North and South America FUJITSU COMPONENTS AMERICA, INC. 350 Cobalt Way, M/S 160 Sunnyvale, CA 94085 U.S.A. Tel: (1-408) 745-4900 Email: fcai.components@fcl-components.com Europe FUJITSU COMPONENTS EUROPE B.V. Diamantlaan 25 2132 WV Hoofddorp Netherlands Tel: (31-23) 5560910 Email: info.fceu@cs.fcl-components.com Web: www.fcl.fujitsu.com/en/ Copyright All trademarks or registered trademarks are the property of their respective owners. Fujitsu Components America or its affiliates do not warrant that the content of datasheet is error free. In a continuing effort to improve our products Fujitsu Components America, Inc. or its affiliates reserve the right to change specifications/datasheets without prior notice. Copyright ©2022 Fujitsu Components America, Inc. All rights reserved. Revised October 25, 2022. Asia Pacific FUJITSU COMPONENTS ASIA, Ltd. No. 20 Harbour Drive, #07-01B Singapore 117612 Tel: (65) 6375-8560 Email: fcal@fcl-components.com China FUJITSU ELECTRONIC COMPONENTS (SHANGHAI) CO., LTD. Room 4306, BM Intercontinental Business Center, 100 Yutong Rd, Shanghai 200070, China Tel: (86 21) 3253 0998 Email: fcsh@fcl-components.com Hong Kong FUJITSU COMPONENTS HONG KONG Co., Ltd. Room 13, 23/F, Seapower Tower, Concordia Plaza, No.1 Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong Tel: (852) 2881 8495 Email: fcsh@fcl-components.com Korea FUJITSU COMPONENTS KOREA, LTD. Alpha Tower #403, 645 Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, 13524 Korea Tel: (82 31) 708-7108 Email: fck@fcl-korea.co.kr ■ Adaptor board type (connector specification) • Connector pin array (viewed from relay board side) Adaptor board side: B34B-PHDSS (LF) (SN) (JST) Remote side: PHDR-34VS (JST) – Printer connector – Connect from control board FTP-68EMCL101/112/151/162
