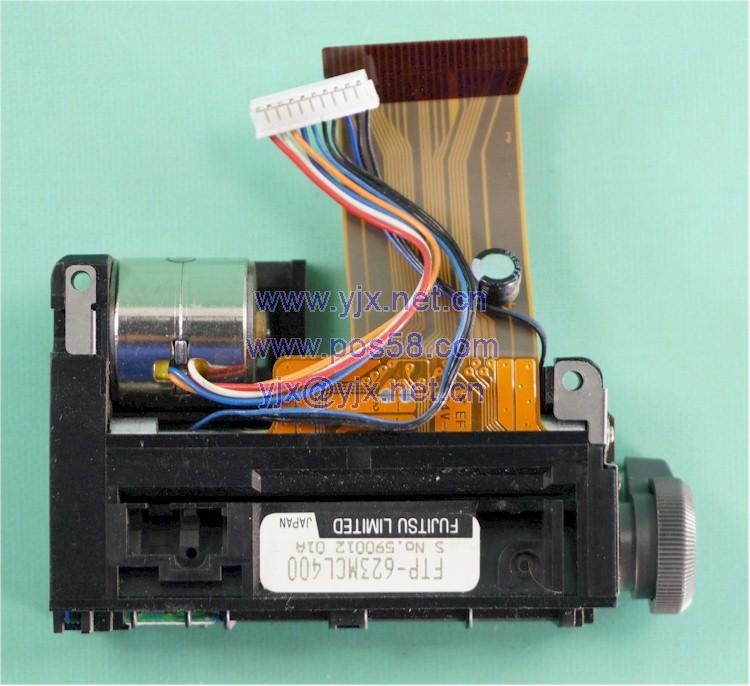

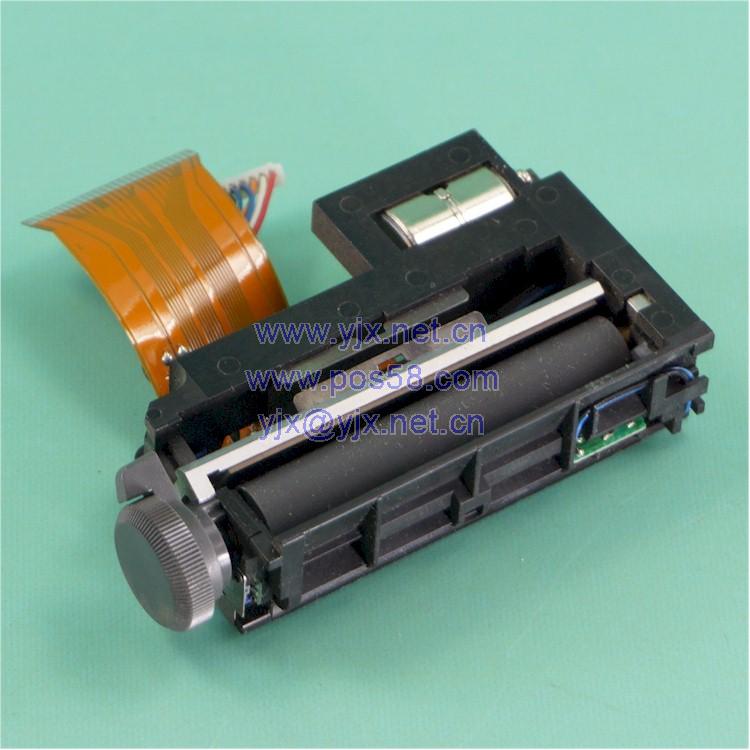

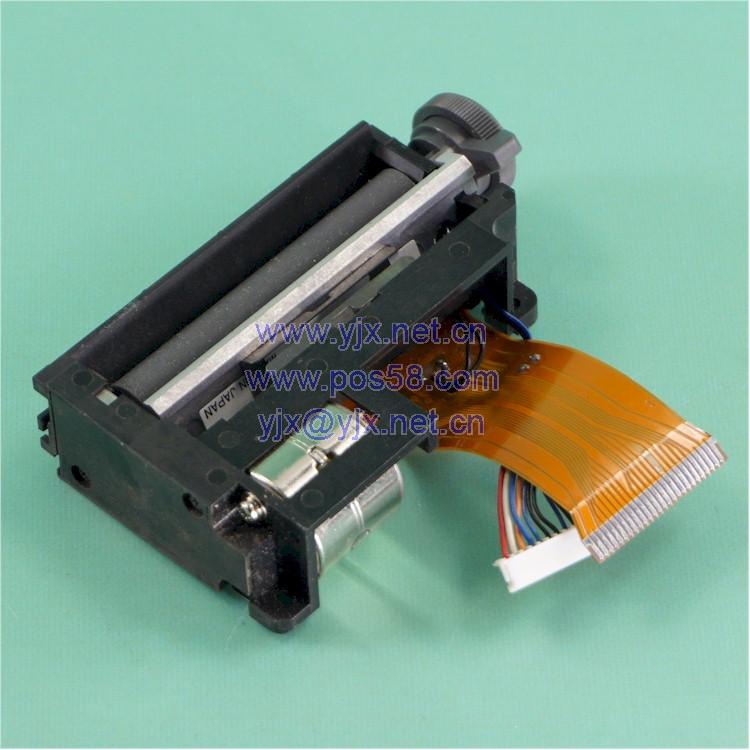

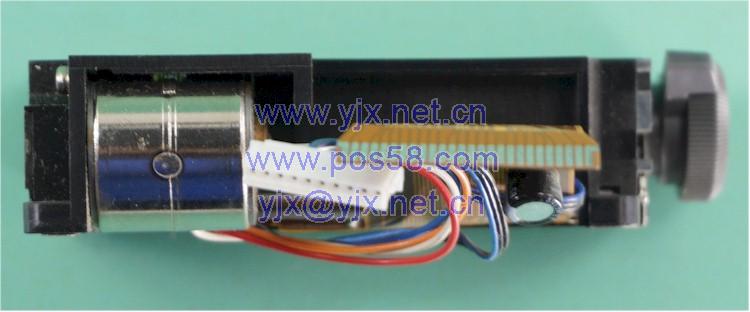

FTP-623MCL400

Category： Products
FTP-623MCL400
Product Manual：FTP-623MCL400

BASIC INFO

BATTERY DRIVE, MICRO LINE THERMAL PRINTER 2” TYPE MECHANISM AND INTERFACE BOARD

Part number	Width	Speed (mm/s)	Paper Feed	Platen	Cutter	Overview
FTP-628MCL053	2-inch	80	Front	Fixed	No cutter	Lowest cost and lightest weight. Small footprint available. Auto loading option. Front paper insertion.
FTP-628MCL054	2-inch	80	Bottom	Fixed	No cutter	Lowest cost and lightest weight. Small footprint available. Auto loading option. Rear paper insertion.
FTP-628MCL101	2-inch	80	Top	Detachable	No cutter	Low cost and small size. Diecast body provides light weight. Easy Load Model (ELM) has top paper insertion with detachable platen.
FTP-628MCL101#21	2-inch	60	Top	Detachable	No cutter	Low cost and light weight, small footprint, 3V logic. Easy loading mechanism (ELM) has top paper insertion with detachable platen.
FTP-628MCL103	2-inch	80	Top	Detachable	No cutter	Lowest cost and smallest size. Diecast body provides lightest weight. Top paper loading with detachable platen.
FTP-628MCL103#70	2-inch	80	Top	Detachable	No cutter	Lowest cost and smallest size. Diecast body provides lightest weight. Top paper loading with detachable platen.
FTP-628MCL113	2-inch	80	Top	Lever/lock	No cutter	Low cost and small size. Easy paper load and easy platen mount. Top paper loading with detachable platen and lock/lever release.
FTP-628MCL353	2-inch	80	Front	Fixed	Auto cutter	Lowest cost and lightest weight mechanism with cutter. Small footprint. Front paper insertion.
FTP-628MCL354	2-inch	80	Bottom	Fixed	Auto cutter	Lowest cost and lightest weight mechanism with cutter. Small footprint. Rear paper insertion.
FTP-628MCL401	2-inch	80	Top	Lever/lock	Easy cutter	Lowest cost, ultra low profile cutter and small size. User selectable full or partial cut. Detachable platen and cutter.
FTP-628MCL701	2-inch	80	Top	Detachable	No cutter	Lowest cost, lightest weight, and smallest size. Diecast body provides light weight. Easy Load Model (ELM) has top paper insertion with detachable platen.
FTP-628MCL751	2-inch	80	Top	Detachable	No cutter	Low cost, light weight, and small size. Diecast vertical body. Easy Load Model (ELM) has top paper insertion with detachable platen.
FTP-62DMCL101	2-inch	100	Bottom	Detachable	No cutter	Low cost and small size. Plastic body provides light weight. Easy Load Model (ELM) drop-in paper insertion with end detachable platen.
FTP-628WSL110	2-inch	50 (AC adapter); 40 (Battery)	Top		Tear cutter	2-inch wide and 1.5-inch diameter paper roll, small size and light weight stand alone Bluetooth, serial & infrared printer, suitable for all mobile platforms except iOS. Small footprint printer with tear bar.
FTP-628WSL120	2-inch	50 (AC adapter); 40 (Battery)	Top		Tear cutter	2-inch wide and 1.5-inch diameter paper roll, small size and light weight stand alone serial and infrared printer, suitable for all mobile platforms except iOS. Small footprint printer with tear bar.
FTP-628WSL210	2-inch	50 (AC adapter); 40 (Battery)	Top		Tear cutter	2-inch wide and 1.5-inch diameter paper roll, small size and light weight stand alone iOS Bluetooth & standard Bluetooth printer. Small footprint printer with tear bar.
FTP-628WSL211	2-inch	50 (AC adapter); 40 (Battery)	Top		Tear cutter	2-inch wide and 1.5-inch diameter paper roll, small size and light weight stand alone Bluetooh printer with drivers for Android, Blackberry Bluetooth printer. Small footprint printer with tear bar.
FTP-628WSL212	2-inch	50 (AC adapter); 40 (Battery)	Top		Tear cutter	2-inch wide and 1.5-inch diameter paper roll, small size and lightest weight stand alone USB printer. Small footprint printer with tear bar.
FTP-634MCL001	3-inch	50	Front	Fixed	No cutter	Low cost and easiest print head access. Plastic body provides lightest weight mechanism. Front paper insertion.
FTP-634MCL002	3-inch	50	Bottom	Fixed	No cutter	Low cost and easiest print head access. Plastic body provides lightest weight mechanism. Rear paper insertion.
FTP-638MCL101	3-inch	60	Top	Detachable	No cutter	Lowest cost and smallest size. Bar code printing supported. Diecast body provides lightest weight mechanism. Top paper insertion with detachable platen.
FTP-638MCL103	3-inch	60	Top	Detachable	No cutter	Lowest cost and smallest size. Bar code printing supported. Diecast body provides lightest weight mechanism. Top paper insertion with detachable platen.
FTP-638MCL401	3-inch	60	Top	Lever/lock	Easy cutter	Lowest profile mechanism and cutter. Diecast body. Top paper insertion with detachable platen and cutter.
FTP-644MCL001	4-inch	50	Front	Fixed	No cutter	Replaceable thermal print head. Plastic body provides lightest weight mechanism. Front paper insertion.
FTP-644MCL002	4-inch	50	Bottom	Fixed	No cutter	Replaceable thermal print head. Plastic body provides lightest weight mechanism. Rear paper insertion
FTP-648MCL103	4-inch	50	Top	Lever/lock	No cutter	Diecast body with detachable platen. Top paper insertion. Lowest cost.
FTP-648MCL104	4-inch	50	Bottom	Lever/lock	No cutter	Diecast body with detachable platen. Bottom paper insertion. Lowest cost.

To Be Discontinued

Part number	Width	Speed (mm/s)	Paper Feed	Platen	Cutter	Overview
FTP-624MCL001	2-inch	60	Front		No cutter	Low cost and replaceable thermal head. Front paper insertion. Plastic body provides light weight.
FTP-624MCL002	2-inch	60	Rear		No cutter	Low cost and replaceable thermal head. Rear paper insertion. Plastic body provides light weight.
FTP-624MCL303	2-inch	60	Front		Auto cutter	Low cost and easiest print head access. Plastic body provides light weight mechanism; mini-cutter is mounted on the frame. Front paper insertion.
FTP-624MCL304	2-inch	60	Rear		Auto cutter	Low cost and easiest print head access. Plastic body provides light weight mechanism; mini-cutter is mounted on the frame. Rear paper insertion.

Discontinued

Part number	Width	Speed (mm/s)	Paper Feed	Platen	Cutter	Overview
FTP-623MCL400	2-inch	57.5	Front		No cutter	Highest speed battery operated printer. Smallest footprint available for 2" mechanisms. Small interface board.
FTP-623MCL402	2-inch	57.5	Rear		No cutter	Highest speed battery operated printer. Smallest footprint available for 2" mechanisms. Small interface board.
FTP-628MCL002	2-inch	60	Rear		No cutter	Low cost and lightest weight mechanism. Smallest footprint. Auto loading option.
FTP-628MCL101#11	2-inch	60	Top		No cutter	Low cost and light weight, small footprint, 3V logic. Easy loading mechanism (ELM) has top paper insertion with detachable platen.
FTP-628MCL383	2-inch	80	Bottom		No cutter	Low cost and light weight mechanism. Small footprint available for 2-inch ELM mechanism.
