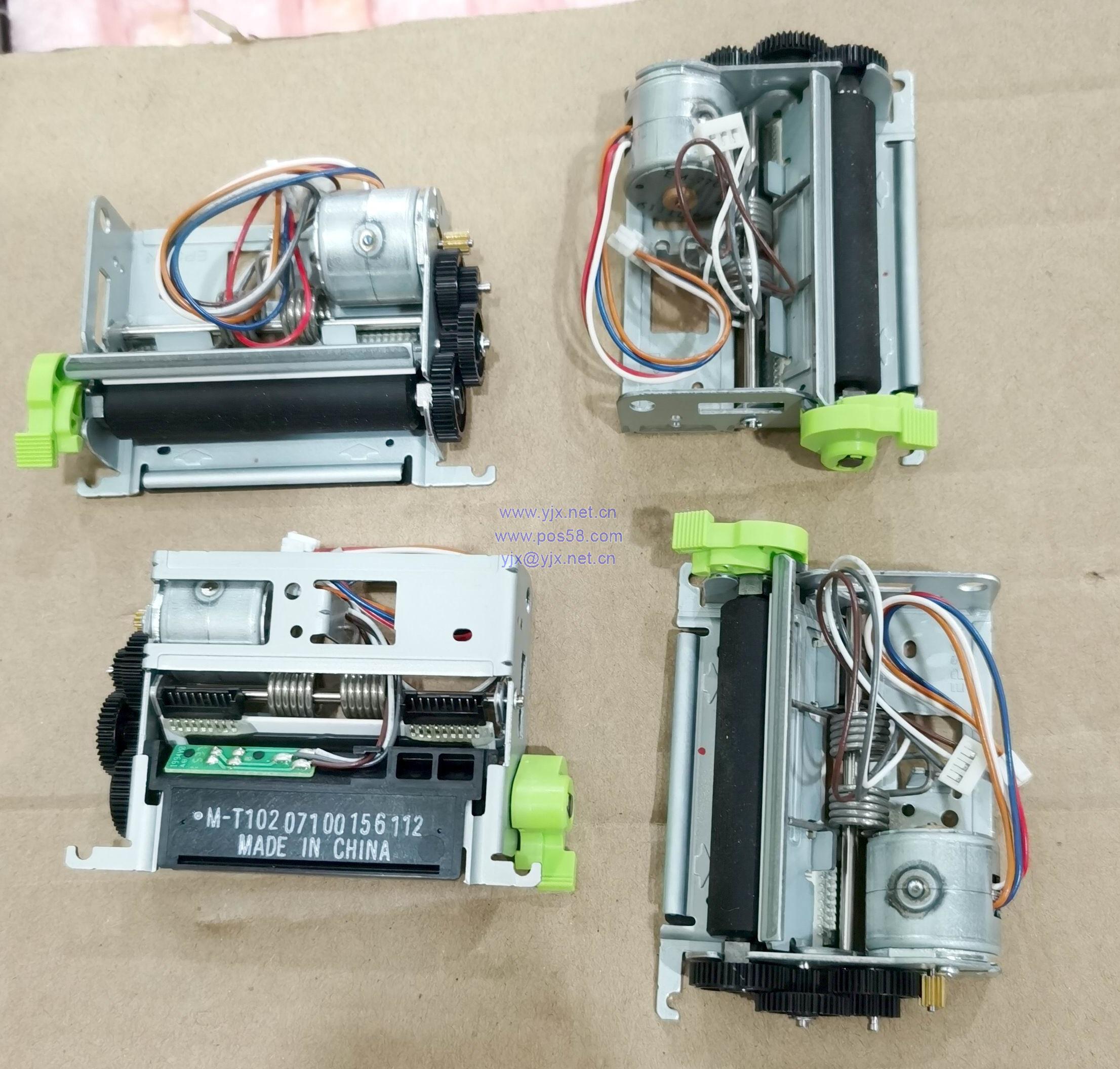

EPSON M-T102

  • Product Item:M-T102
  • Category: Products
  • M-T102
  • M-T102
  • M-T102A
  • Product Manual:M-T102
BASIC INFO

Impact Mini Printers

PRINTER
PRINT METHOD Thermal line
PRINTING FORMAT
NUMBER OF TOTAL DOTS 384 dots/line
RESOLUTION 8 dots/mm
PRINTING WIDTH 48mm
PRINTING SPEED Approx.40mm/sec(at 6.0 V)
PAPER FEEDING
PAPER FEEDING PITCH 0.0625mm
PAPER FEEDING SPEED Max.60mm/sec. Approx.40mm/sec(at 6.0 V)
SENSOR
PAPER END Photosensor
PRINTHEAD TEMPERATURE Thermistor
PRINTHEAD UNLOAD Microswitch
POWER SUPPLY VOLTAGE 5.0 to 7.5 VDC(for printhead & motors)
5VDC ± 5%(printhead control & sensors)
CONNECTOR
PRINTHEAD Pin connector
MOTOR Pin connector
PAPER DIMENSIONS 57.5±0.5mm(W) dia.50mm
PAPER THICKNESS 0.065mm ± 0.005mm
AMBIENT TEMPERATURE 0°to ± 50°
RELIABILITY (MCBF) 5*106 lines
CONTROL LSI LA-T101
OPTIONS Mounting Attachment
OVERALL DIMENSIONS 69.5mm (W) x 51.2mm (D) x 20mm (H)
WEIGHT Approx. 85 g

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
