CD-A500A Printer head
DOT IMPACT PRINTERS
CD-S500/501
| Category | Paper width | Printing speed | Model |
|---|---|---|---|
| POS Printers | 58mm | 6.0 lines/sec. (30 columns) | CD-S500/501 |
| 69mm | 5.4 lines/sec. (36 columns) | ||
| 76mm | 5.0 lines/sec. (40 columns) | ||
| 76mm |
3.6 lines/sec (iDP3550-F/iDP3551-F) 3.0 lines/sec (iDP-3550-P) |
iDP3550/3551 | |
| 58mm |
2.5 lines/sec (24 columns) 1.8 lines/sec (40 columns) |
CBM-910 Type II | |
| Panel Printers | 58mm |
2.5 lines/sec (24 columns) 1.8 lines/sec (40 columns) |
CBM-920 Type II |

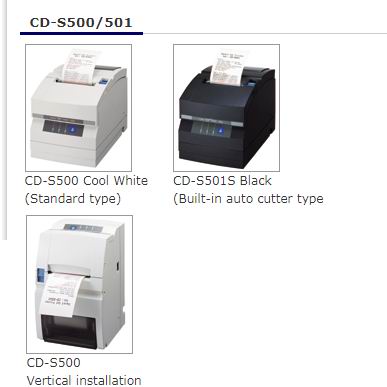

CD-S500/501
CD-S500 Cool White
(Standard type)
CD-S501S Black
(Built-in auto cutter type
CD-S500
Vertical installation
Paper roll
58mm
Paper roll
69mm
Paper roll
76mm
30 columns
36 columns
40 columns
Receipt
Kitchen
Kiosk
2 color
printing
Journal
Black mark
Serial
Parallel
USB
Ethernet
To Page Top
Features
- High-speed, two-color printing at approx.5.0 lines/sec.
- Logic-seeking control
- Drop-in paper loading
- Selectable paper width
- One, two, or three ply receipts
- Built-in programmable buzzer
- ESC/POS, CBM, or STAR emulation
- Built-in NV Memory
- User-installable interface cards
- Cash drawer kick-out
- Auto Cutter (Optionnal)
- Black mark sensor (Optionnal)
Easy paper loading
Just drop in and close the top cover
Versatile installation
The CD-S500 can also be wall-mounted and is idea for kitchen slips, delivery slips, coupons, tickets, receipts, or daily reports.
* Optional wall mount kit is required.
Power supply choices
Type A
AC adapter type
Type S
Built-in power supply
IMPACT DOT MATRIX PRINTER MECHANISMS
DP-614/617
| Classification category | Paper width | Printing speed | Model | |
|---|---|---|---|---|
| Printing color | Single | 58mm | 2.5/1.8 lines/sec. | MD-910/911 |
| 76mm/76-89mm | 3.6 lines/sec. | DP-624 | ||
| 38 + 38mm | 3.0 lines/sec. | DP-630 | ||
| 45 + 45mm | 3.0 lines/sec. | DP-730 | ||
| 2 colors | 76mm | 76mm | DP-330 | |
| 58/76/80mm | 58/76/80mm | DP-331/332 | ||
| 76mm/76-89mm | 76mm/76-89mm | DP-614/617 | ||
| 76mm/76-89mm | 3.6/3.0 lines/sec. | DP-654/657 | ||
| Paper feed | Friction | 76mm | 76mm | DP-330 |
| 58/76/80mm | 58/76/80mm | DP-331/332 | ||
| 58mm | 2.5/1.8 lines/sec. | MD-910/911 | ||
|
Friction or Sprocket |
76mm/76-89mm | 76mm/76-89mm. | DP-614/617 | |
| 76mm/76-89mm | 3.6 lines/sec. | DP-624 | ||
| 76mm/76-89mm | 3.6/3.0 lines/sec. | DP-654/657 | ||
| Two station | Friction | 38 + 38mm | 3.0 lines/sec. | DP-630 |
| 45 + 45mm | 3.0 lines/sec. | DP-730 | ||
DP-614/617
DP-61xF
DP-61xP
DP-614H/617H
Paper roll
76mm
F type
