BASIC INFO

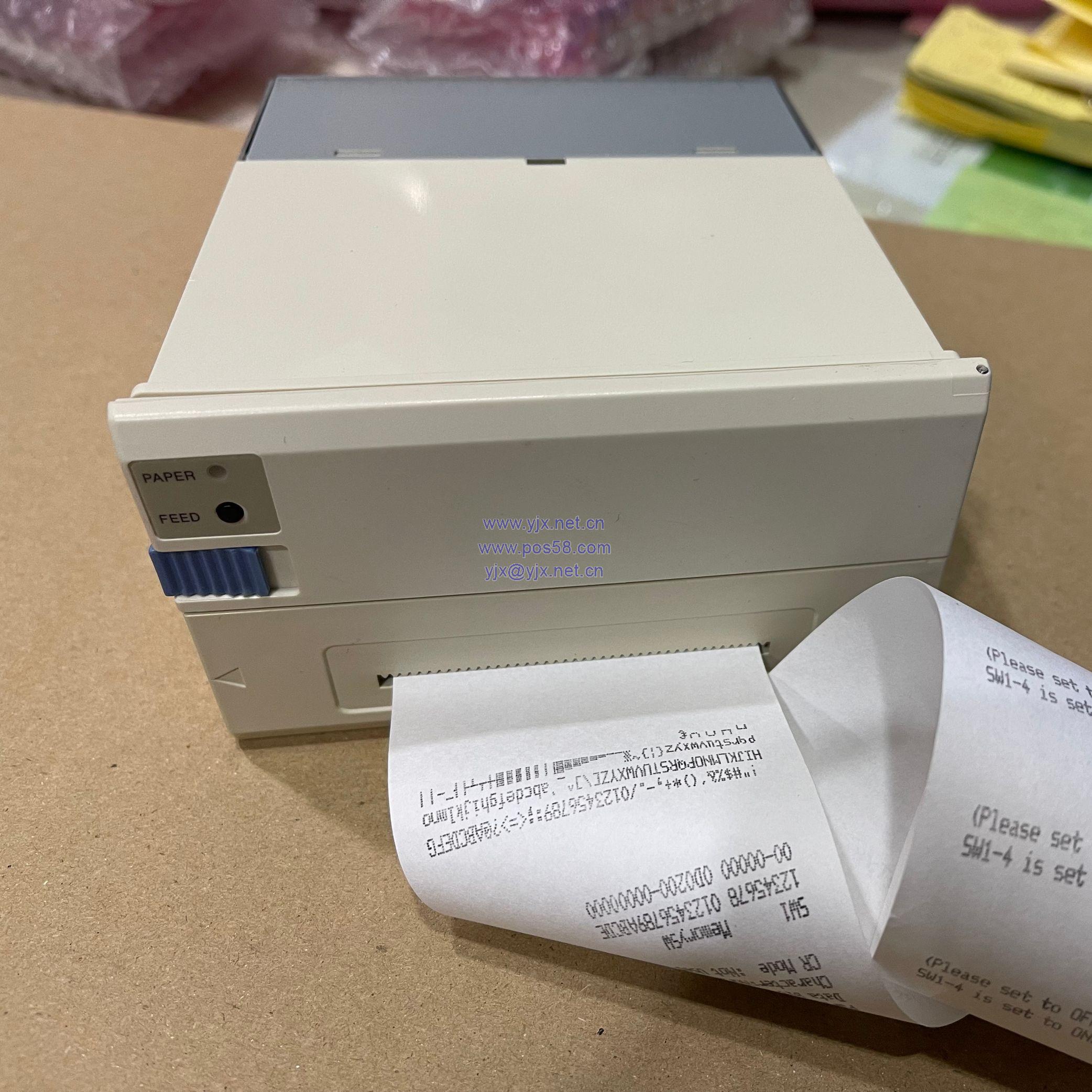

CBM-920 Type II
Paper roll
58mm
Paper roll
58mm
24 columns
40 columns
Receipt
Ticket
Kitchen
Serial
Parallel
Features
- Palm size and Light weight
- Bit image graphics printing
- 2K bytes input buffer
- Paper-near-end sensor
- Paper auto loading
- Panel mount installation for industrial applications
- CBM-920/iDP3110 emulation
To Page Top
Specifications
Model |
CBM-920 Type II (24 columns) |
CBM-920 Type II (40 columns) |
|
---|---|---|---|
Printing method | Serial impact dot matrix | ||
Printing direction | One-way printing | ||
Font | (5 + 1) × 8 | (4 + 0.5) × 8 | |
Head pins | 8 pins (4 opins × 2 heads) | ||
Print speed | Approx. 2.5 lines/sec | Approx. 1.8 lines/sec | |
Number of print columns | 144 dots/line | 180 dots/line | |
Character size | 1.62 × 2.4mm | 1.08 × 2.4mm | |
Character spacing | 1.98 mm | 1.19 mm | |
Paper feed speed | Approx. 5 lines/sec. | Approx. 3.6 lines/sec. | |
Character type |
PC437/852/857/858/860/863/864/865/866/869, WPC1252, Katakana, CBM-920 emulation (Japan, International) |
||
Line pitch | 3.52 mm | ||
Paper | Type | Single sheet, copier paper (original and copy) | |
Size |
57.5 ±0.5 (W) × Φ50mm Core internal dimension: Φ12 ± 1 mm Core outer dimension: Φ18 ± 1mm |
||
Thickness | Total thickness: 0.09 mm or less | ||
Ink ribbon cartridge | Special ink ribbon cartoridge, Color: Single color (Black) | ||
Interface | Serial (RS-232C compliant), Parallel (Centronics compliant) | ||
Emulation | CBM-920 and iDP3110 (selectable with memory switch) | ||
Buffer size |
2k bytes/72 bytes (Selectable with memory switch on Serial I/F model) |
||
Supply voltage (*1) | Driving system: DC 5V±5% (0.2A) | ||
Driving system: DC5V ±10% (approx. 2.5A, approx. 4A peak) | |||
Power consumption | Approx. 7VA (Printing), Approx. 0.5VA (Stand-by) | ||
Outside dimensions | 115 (W) × 65 (D) × 119mm (H) | ||
109 (W) × 62 (D) + 0mm /-0.5mm (Panel installation hole size) | |||
Weight | Approx. 0.5kg (including mounting brackets, ink ribbon cartridge) | ||
Operating temperature and humidity |
0 to 40°C, 35 to 85% RH (No condensation) | ||
Storage temperature and humidity |
-20 to 60°C, 10 to 90% RH (No condensation) | ||
Reliability | Printer: MCBF 1.5 million lines | Printer: MCBF 1.0 million lines | |
Safety standards | UL (RU), TÜV, CE Marking, FCC Class A |
*1: The power supply is not included, please prepare for the appropriate voltage of DC5V±5% and current capacity of 2.5A or more and a peak current of 4A or more.
Papge Top
Type Classification
CBM-920II
(1)
-
40
(2)
R
(3)
F
(4)
-
2
(5)
DC5v
(6) |
|
---|---|
(1) Model type | CBM 920 Type II |
(2) Number of columns |
24: 24 columns/144 dots 40: 40 columns/180 dots |
(3) Interface |
R: Serial (RS-232C compliant) P: Parallel (Centronics compliant) |
(4) Market | F: Internationall |
(5) Model type | 2: CBM-920 type II |
(6) Power supply | DC5V: DC 5V operation |
To Page Top
Accessories
Standard Accesory
Wiring cable
Optional Accesory
Ink Ribbon Cartirdge
Black color (IR-91B)
