BASIC INFO

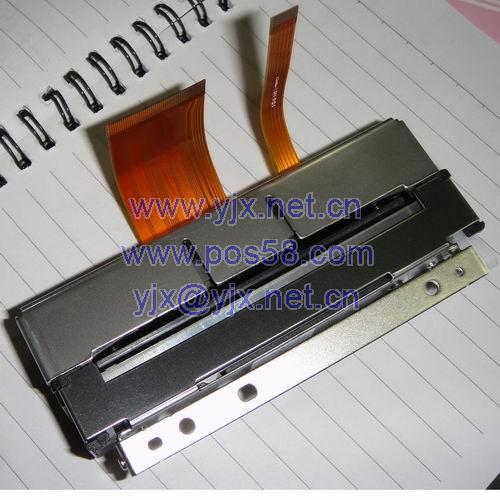

CAPD247/347
24V range mechanism incl. Auto Cutter - Paper width : 56mm and 80mm - Easy Paper Operation
Features
- 2-inch and 3-inch model available
- Maintaining the compact size including the auto cutter part (height <30mm)
- Printing speed up to 200 mm/s
- Cutting frequency of 30 cuts/minute
- Cutter lifetime of 1.000.000 cuts or more (in specified environment)
- Paper insertion by easy paper operation
- Latch function to secure unchanging pressure between thermal head and platen
- Data Sheet (PDF)
Description
The combination of the 24 Volt printer mechanism LTPD247 (horizontal version) plus auto cutter results into this highly reliable, robust, fast and cost oriented printing solution. In addition to the benefits of the LTPD 24 Volt series, the cutter offers a reliability of 1.000.000 cuts minimum ensuring a continuously reliable paper output. With a height of less than 30mm including the auto cutter part this product makes the grade where space is limited.
As to peripherals we offer a serial and USB interface, CPU and Windows drivers (XP and Vista).
Easy Paper Operation Mechanism 24V
Thermal Printer Mechanism
LTPD247/347
- High performance in compact design
- Max. printing speed : 200mm/sec
- Platen latch function
- Label printing *Under specific conditions only.
| Model | LTPD247 | LTPD347 | |
|---|---|---|---|
| *1 Use recommended thermal papers. *2 Excluding protrusion. | |||
| Printing | Method | Thermal line dot printing | |
| Number of dots/line | 432 | 576 | |
| Resolution (dots/mm) | 8 | ||
| Paper width (mm) |
58
|
80
|
|
| Printing width (mm) | 54 | 72 | |
| Speed (mm/sec) max | 200 | ||
| Paper path | Curved | ||
| Detection | Head temperature | By thermistor | |
| Platen position | By mechanical switch | ||
| Out of paper | By photo interrupter | ||
| Power supply (V) | Operation voltage (Vdd) | 2.7 to 3.6 / 4.75 to 5.25 | |
| Operation voltage (Vp) | 21.6 to 26.4 | ||
| Peak current (A) | Head | 2.61 (26.4V / 144dots) / 5.23 (26.4V / 288dots) | |
| Motor | 0.44 | 0.52 | |
| Service Life | Pulse activation (pulse) | 100 million | |
| Abrasion resistance (km) | 100*1 | ||
| Operating temperature (˚C) | -10 to 50 | ||
| Dimensions (W×D×H mm) | Horizontal | 71.0 × 30.0 × 15.0*2 | 91.0 × 30.0 × 15.0*2 |
| Vertical | 71.0 × 15.0 × 30.0*2 | 91.0 × 15.0 × 30.0*2 | |
| Mass (g) | Approx. 56 | Approx. 64 | |
| Model | IFD001-01UK | IFD001-01SK | |
|---|---|---|---|
| *4 Please see "Associated software tool" for details. | |||
| CPU | PTD00P01 | ||
| Thermal printer | LTPD247, LTPD347, CAPD247, CAPD347 | ||
| Operating voltage (V) | Vp: 21.6 to 26.4 | ||
| Character matrix (H×W dots) |
16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
||
| Character type | Extended graphics character set | Yes | Yes |
| Katakana character set | Yes | Yes | |
| Codepage 1252 | Yes | Yes | |
| Optional font | Yes | Yes | |
| Downloaded character | Yes | Yes | |
| User-defined character | Yes | Yes | |
| JIS 1 & 2 level kanji | Yes | Yes | |
| Communication interface | USB (2.0) | Serial (RS-232C) | |
| Dimensions (W×D×H mm) | 69.0 × 50.0 × 14.0 | ||
| Software*4 | Printer driver, OPOS, POS for .NET, Linux® | ||
| Model | PTD00P01 |
|---|---|
| *5 CG ROM: Japanese *6 Please see "Associated software tool" for details. | |
| Thermal printer | LTPD247, LTPD347, CAPD247, CAPD347 |
| Package form | 120pin QFP |
| Operating voltage (V) | Vp: 21.6 to 26.4, Vcc: 3.0 to 3.6 |
| Input frequency (MHz) | 12 +/- 0.01% |
| Configuration | C-MOS LSI |
| Communication interface | Parallel, Serial, USB |
| Character type |
Extended graphics character set, Codepage 1252 Other characters is available with CGs*5 or external ROM |
| Character matrix (H×W dots) |
16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
| Dimensions (W×D×H mm) | 16.0 × 16.0 × 1.7 |
| Software*6 |
Printer driver, OPOS, POS for .NET, Linux® |
