PrintHead for PR-950

If your PR-950 cannot print clearly and the printed content is missing. There is a problem with the paper output, please replace the printing component.

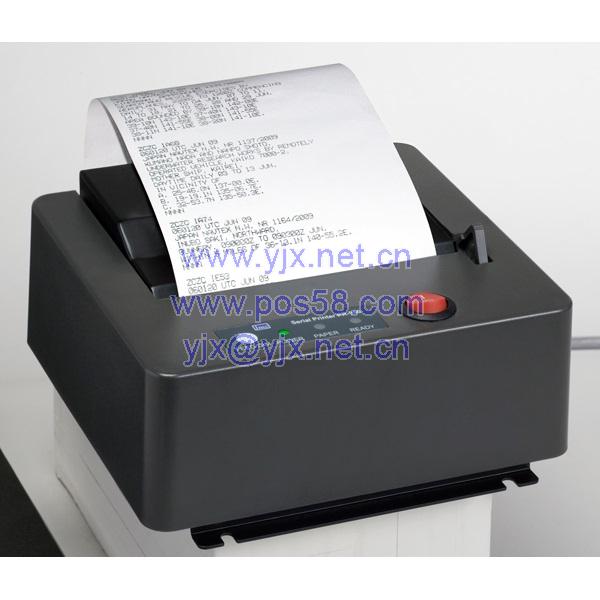

Serial line thermal printer with stationary print head
Prints up to *152 characters/line in normal or bold type fonts.
Plugs in directly to JMC display-type NAVTEX receivers.
Serves as external printer for *2NT-900 printing-type NAVTEX
receiver.
Compatible with PR-900 dot matrix printer
Outputs readiness status signals for use in AIS and other
printing applications.
Housed in rust-free rugged ABS plastic cabinet

Print Head Type: Line thermal head
● Max. No. of Printable Characters: *152 characters/line
● Character Font Size: 12×8 dots, 2.1 mm(H) X 1.8 mm(W)
● Recording Paper: Thermo-sensitive, 112 mm×25 m/roll
● Hardware Interface: 8-pin connector and DSUB-9 (RS-232C)
● Baud Rate: 110 and 4800, selectable
● Flow Control: None (110 baud), status signal in hex (4800 baud)
● Power Requirements: 11-40 VDC (nominal) 12 W (printing)
● Dimensions: 167(H)X182(W)X84(D) mm, less mounting tabs
● Weight: Approx. 1.5 kg (with standard paper roll)
*1: Up to 40 characters/line when interfaced with NT-1800 and NT-2000.
*2: Optional modification kit is required for NT-900.
