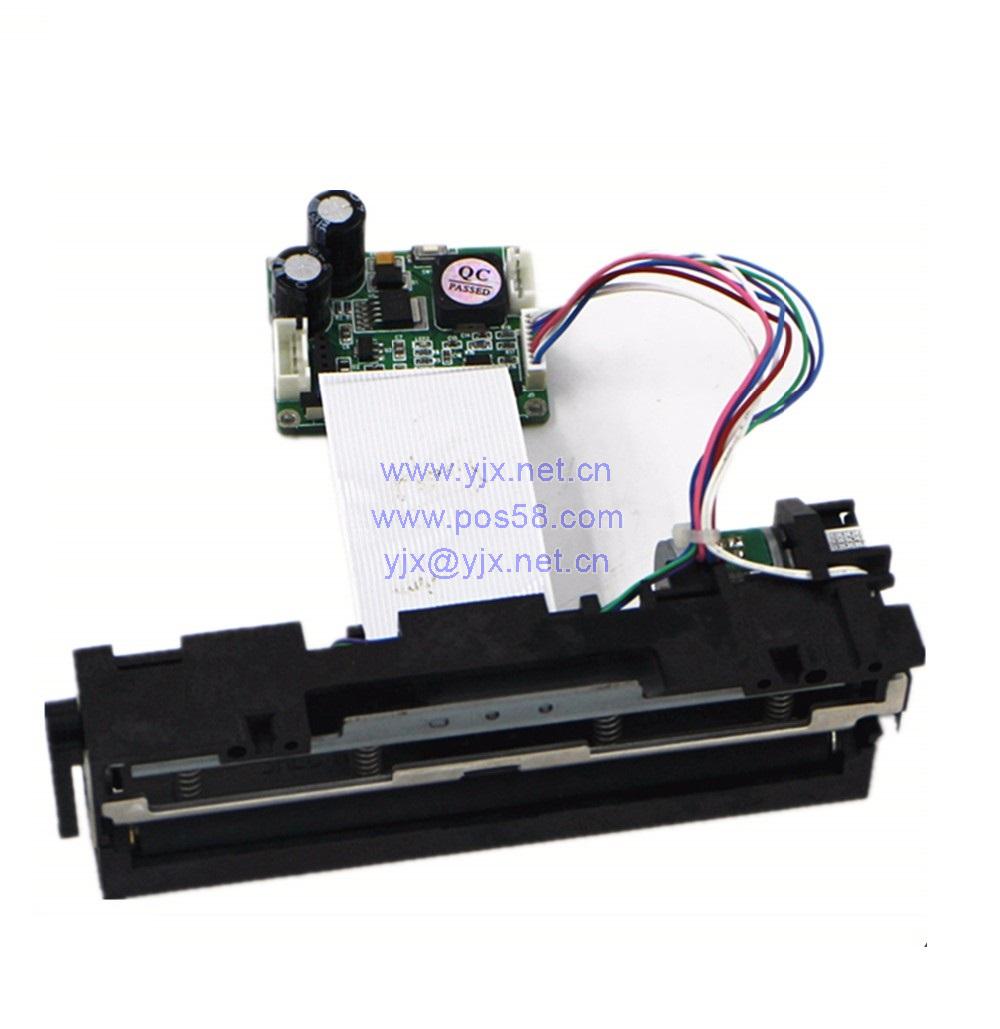

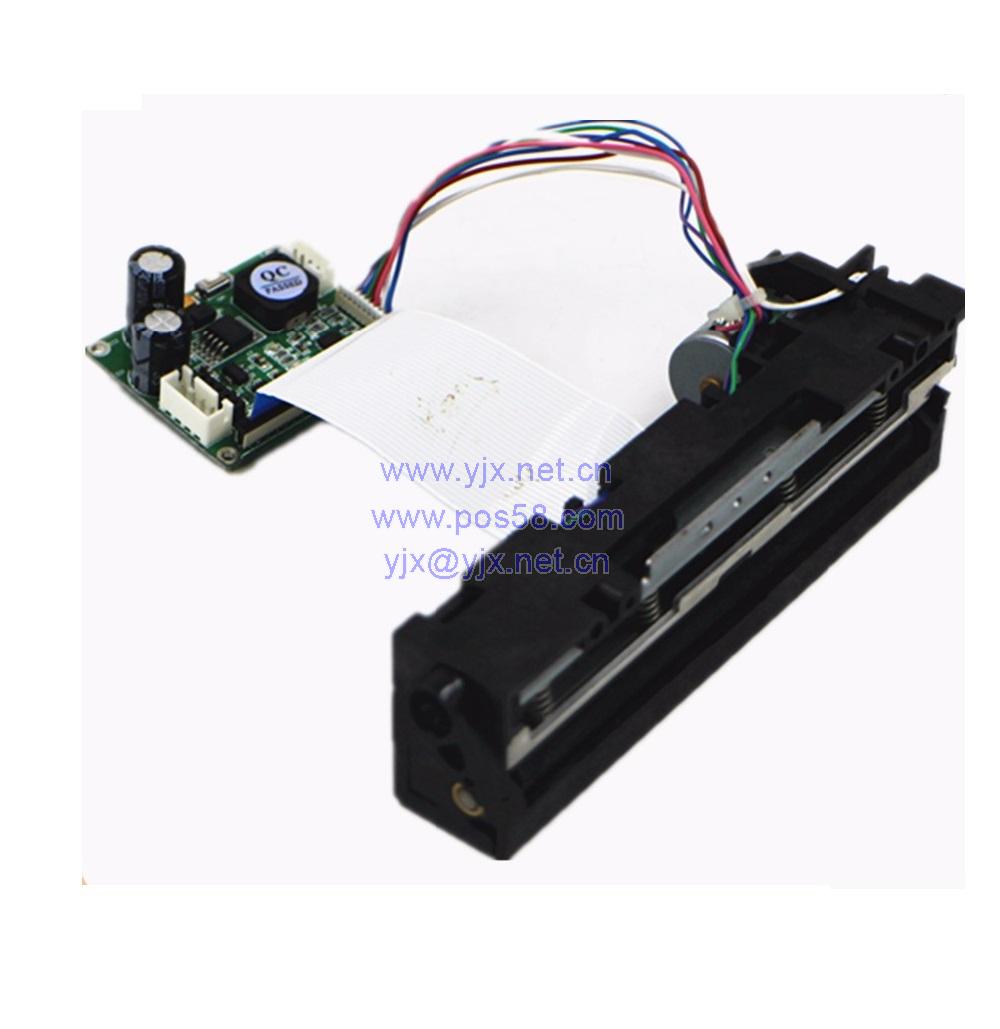

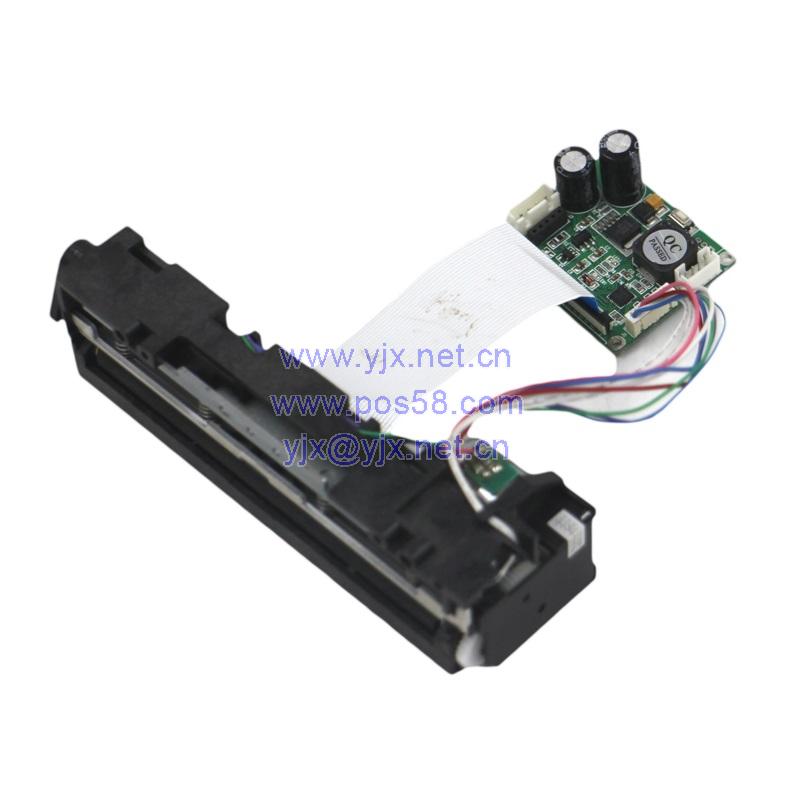

ndustrial equipment used 4 inch thermal printer head

  • Product Item：ndustrial-equipment-used-4-inch-thermal-printer-he
  • Category： Other print heads
  • ndustrial-equipment-used-4-inch-thermal-printer-head
  • 110mm
  • Product Manual：ndustrial-equipment-used-4-inch-thermal-printer-head
Inquiry
BASIC INFO

Overview
Quick Details
Products Status:
Stock
Type:
thermal printer head
Style:
Black And White
Use:
Barcode Printer
Interface Type:
RS-232/TTL
Max Paper Size:
112 mm
Black Print Speed:
85 mm/s
Color Print Speed:
85 mm/s
Max. Resolution:
203 dpi
Brand Name:
masung
Model Number:
YJX-V445
Place of Origin:
Guangdong, China (Mainland)
Mechanism:
LTPV445
Printing Method:
Thermal dot line printing
Dots/line:
832 dots/line
Printing width:
104 mm
Paper thickness:
60~135 um
Paper feeding direction:
90°
Dimension (L x W x H):
125X 34.5 X 39.5 mm
Weight:
About 130 g
Power supply:
DC 8V~18V
Flash memory:
128k

Specification:





Type

Printer head

Printing Method

Thermal dot line printing

Dots/line

832 dots/line

Dot pitch

8 dots/mm

Paper width

112 mm

Printing width

104 mm

Paper thickness

60~135 um

Printing speed

max 85 mm/s

Paper feeding direction

90°

sensor

Thermal head temperature: thermistor

Head up: photoelectric sensor

Paper out :photo interrupter

Operation voltage(V)

Vdd:4.5 to 5.5

Vp:4.2 to 8.5

Current (A)

Printer head: 3.33

Motor:    1.0

Reliability

Circuit: over 110 million pulses

Mechanism: over 100 km

Working temperature

0 – 50 ℃
